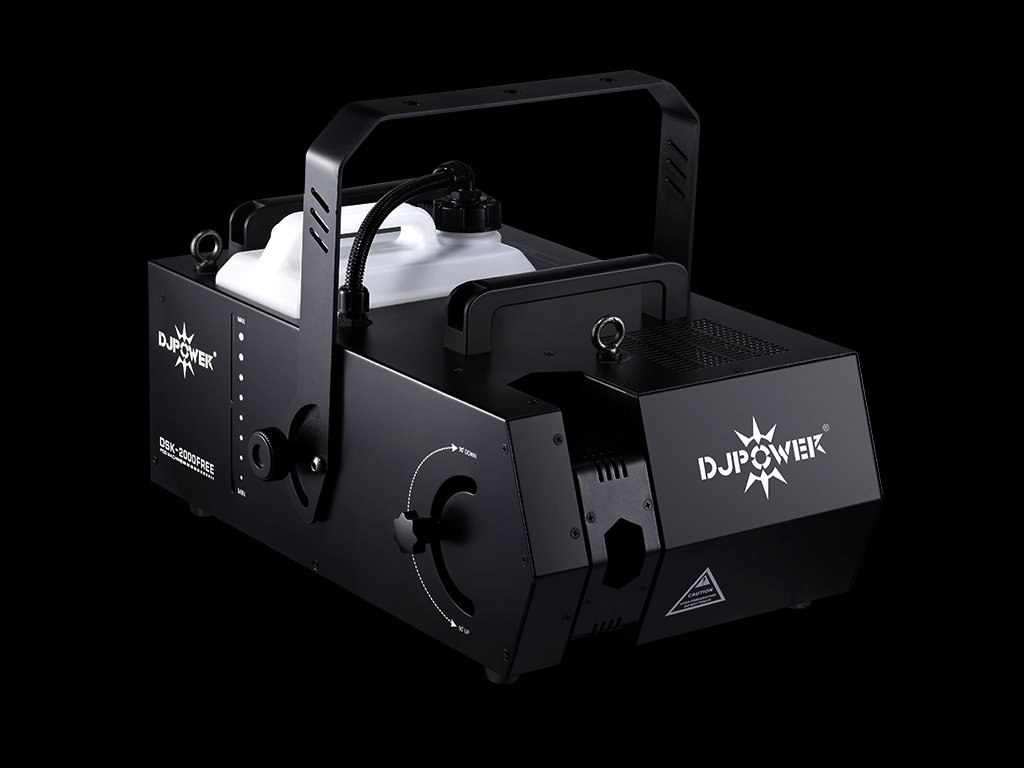

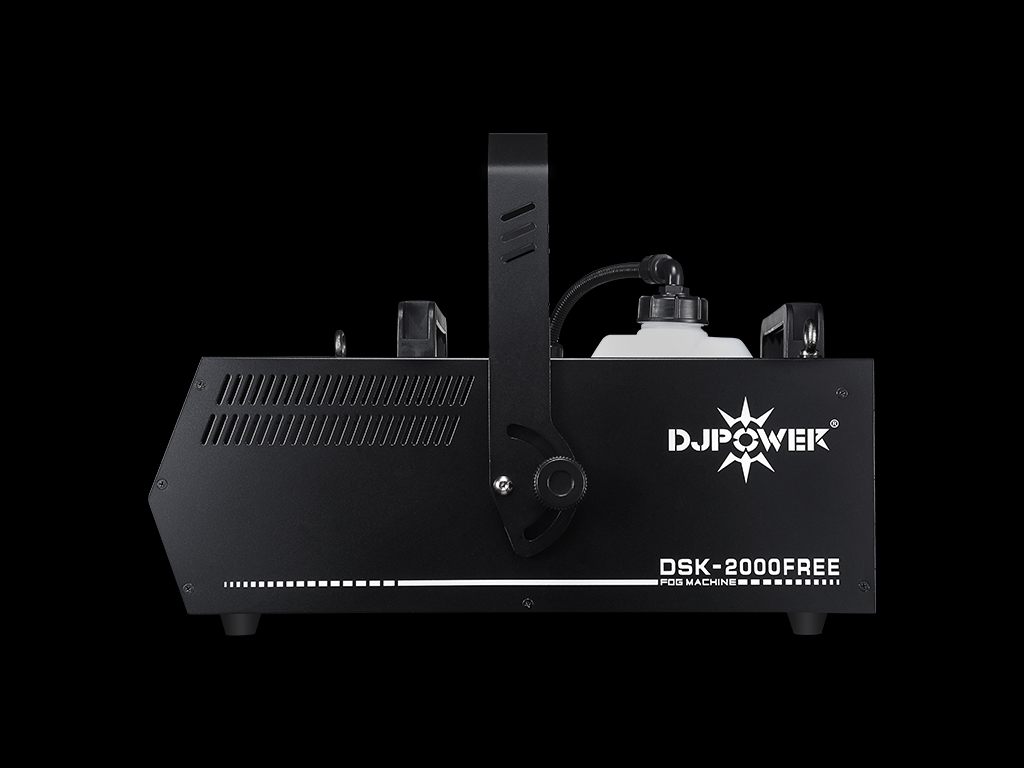

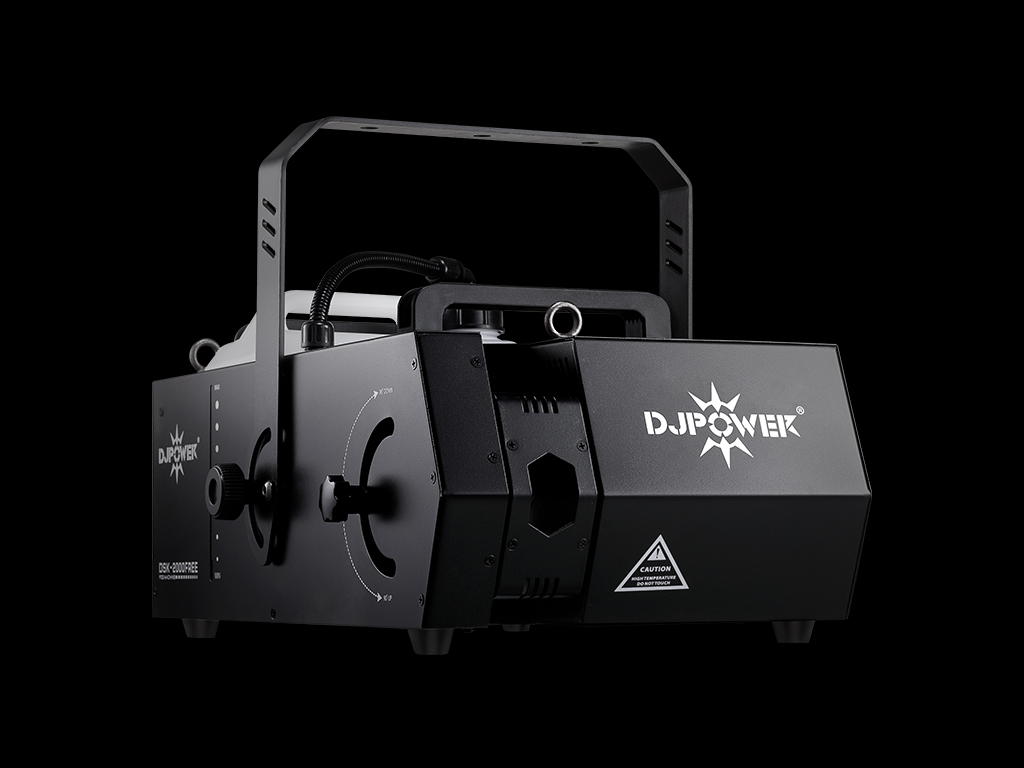

DSK-2000

MULTI-ANGLE FOG MACHINE

DSK-2000 Professional multi-angle output fog machine, which is easily to adjust fog direction by 180°adjustable nozzle that you never need to adjust Angle of fog machine. It delivers a thicker, voluminous fog output. Robust control options allow the machine to be controlled independently, remotely or with DMX.

Features

  • Professional multi-angle fog machine;
  • Angle adjustable fog outlet, 180° adjustable fog direction;
  • Unique temperature control system;
  • Advanced No-Fluid protection;
  • Strong anti-interference ability;
  • Anti-loose power plug;
  • The new heating system producing much more high-quality fog;
  • Built-in LCD control, wireless control, 3-pin and 5-pin DMX control;
  • Together with H-9 DMX Fan, DSK-2000 can produce massive fog effect without condensed fluid squirting and the angle can be matched perfectly.
  • Please use DJPOWER professional fog fluid PRO-A or PRO-D.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 8 A, 250 V
  • Total Power Consumption: 1,750 W
  • Operating Current: 7.6 A
  • Power Input Connector: Lockable PowerCon

Heating

  • Heat Up Time: Appr. 8.0 min
  • Heater Type: Aluminum Heater Block

Capacity

  • Fluid Tank Capacity : 1.3 Gal.

Output

  • Adjustable Volume: √
  • Volume Adjustment Level/Range: 1-100%
  • Max Output Volume: Appr. 26,600 cuft/min
  • Max Output Distance : Appr. 6 m
  • Fluid Consumption @ full volume : Appr. 133.3 mL/min
  • Maximum Continuous Duration @ full volume: Appr. 30 sec
  • Continuous Output : ×
  • Max Continuous Output Level: 100%
  • Fully-loaded Cumulative Output Duration @ full volume: Appr. 37 min

Features

  • Physical Thermostat: √
  • Electronic Thermo-Control: √
  • No-Fluid Protection: √
  • Instant-Stop: ×

Control

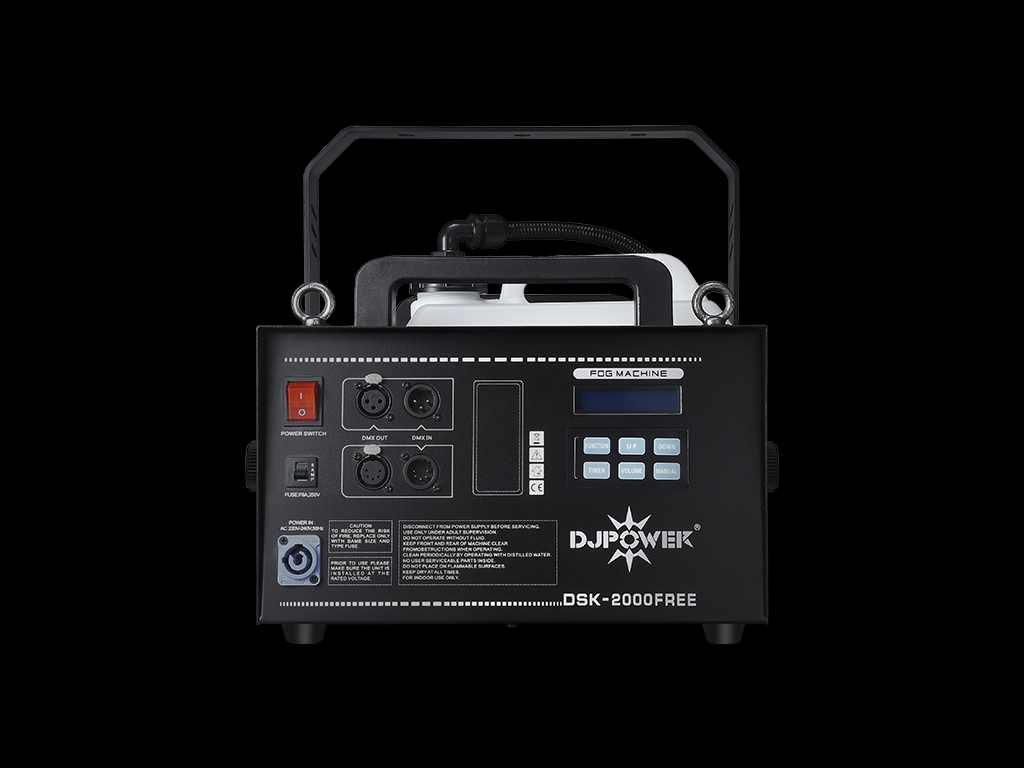

  • On-device Manual Control : LCD control board
  • Wireless Control: W-4 / RF 433MHz / Built-in
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 1
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-4 / RF 433MHz / Transmitter
  • Wired Controller Model: ×

Consumable

  • Consumable: PRO-A or PRO-D Fog Fluid

Weight & Dimensions

  • Net Weight: 17 kg / 37.5 lb.
  • Gross Weight: 18 kg / 39.7 lb.
  • Machine Dimensions: 532 × 386 × 290 mm / 20.9 × 15.2 × 11.4 in.
  • Packing Dimensions: 575 × 415 × 355 mm / 22.6 × 16.3 × 14 in.
