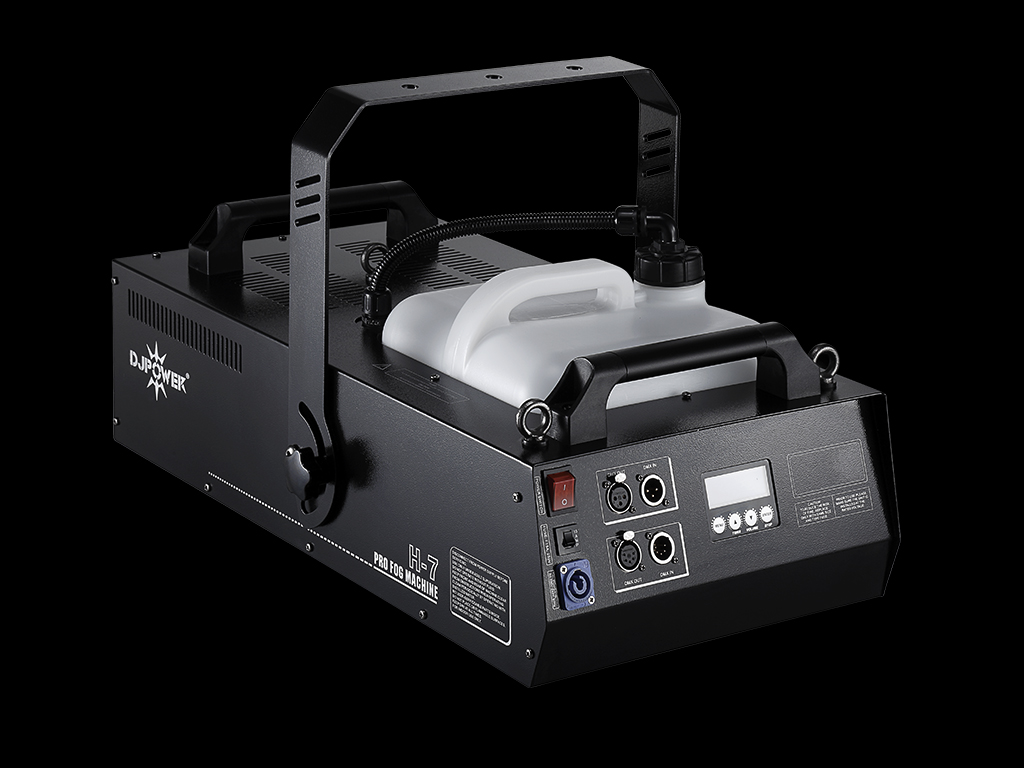

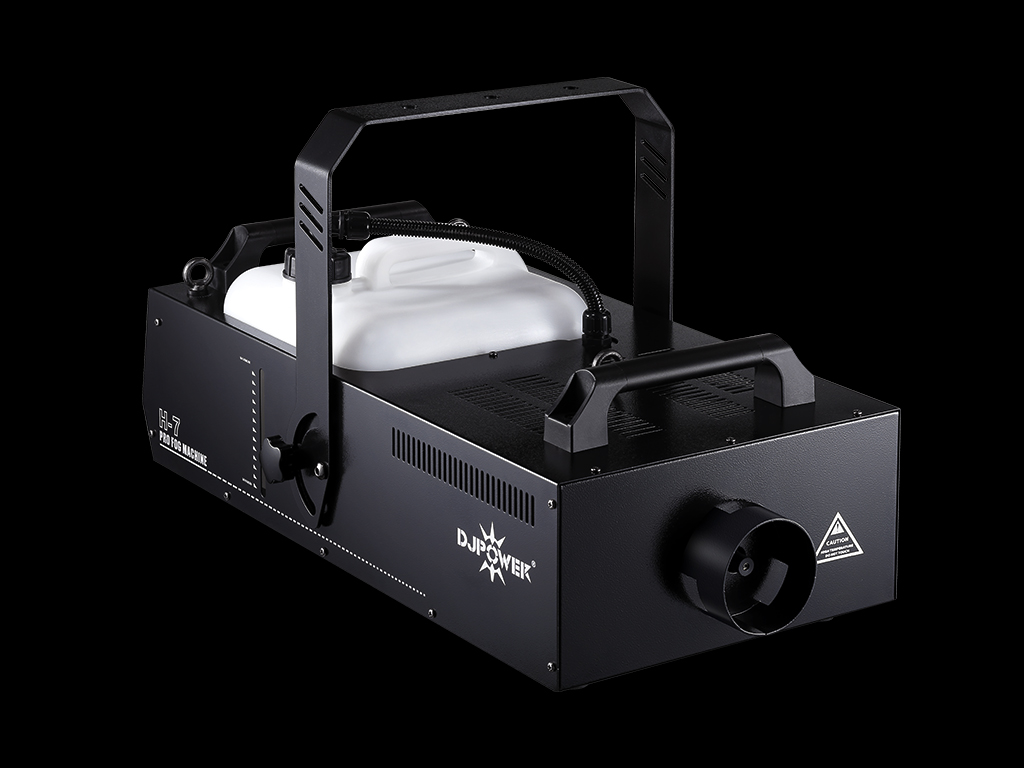

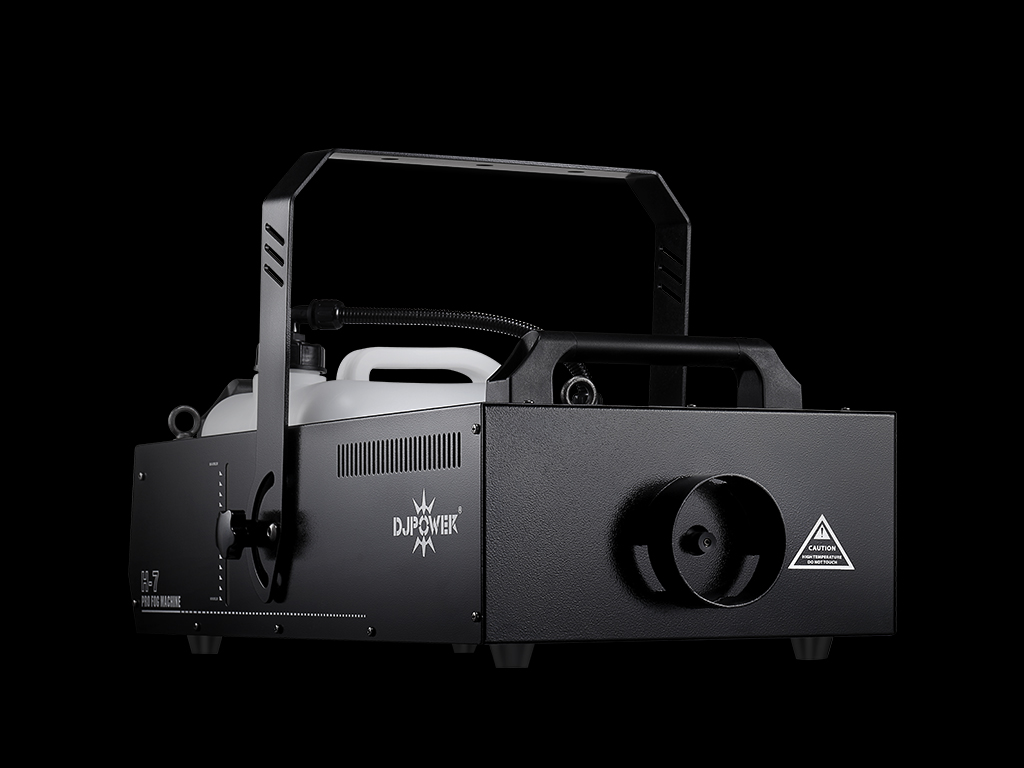

H-7

PRO FOG MACHINE

As one of the most professional fog machine, H-7 is a virtually massive fog producer delivers a powerful fog to create the best atmospheric effect. It equips with "Immediate-Stop" patented technology, electronic temperature control system, high precision temperature control PCB and brand new professional fog generator. Built-in LCD control panel enable timing and quantitative work, adjustable fog output. It's capable of voluminous output, even and odor-free. Fill up a venue within very short time. Smooth and stable smoke even at 1% output.

Features

  • Available for timing, output 1-100% precisely adjustable;
  • Enormous output, fill a venue within seconds. 100% output—40seconds continuous work; 1-10% output—work ceaselessly;
  • Super stable and durable;
  • Compact and lightweight;
  • No fluid protection;
  • Unique "immediate-stop" patented technology;
  • Strong anti-interference ability;
  • Anti-loose power plug;
  • Built-in LCD control, wireless control and DMX control. Equipped with 3-pin and 5-pin DMX sockets;
  • Please use DJPOWER professional fog fluid PRO-A or PRO-D.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 16 A, 250 V
  • Total Power Consumption: 3,000 W
  • Operating Current: 13.0 A
  • Power Input Connector: Lockable PowerCon

Heating

  • Heat Up Time: Appr. 7.0 min
  • Heater Type: Aluminum Heater Block

Capacity

  • Fluid Tank Capacity : 9 L

Output

  • Adjustable Volume: √
  • Volume Adjustment Level/Range: 1-100%
  • Max Output Volume: Appr. 40,000 cuft/min
  • Max Output Distance : Appr. 8 m
  • Fluid Consumption @ full volume : Appr. 5 min/L
  • Maximum Continuous Duration @ full volume: Appr. 40 sec
  • Continuous Output : ×
  • Max Continuous Output Level: 100%
  • Fully-loaded Cumulative Output Duration @ full volume: Appr. 45 min

Features

  • Physical Thermostat: √
  • Electronic Thermo-Control: √
  • Adjustable Output : √
  • Adjustable Fan Speed: ×
  • No-Fluid Protection: √
  • Instant-Stop: √

Control

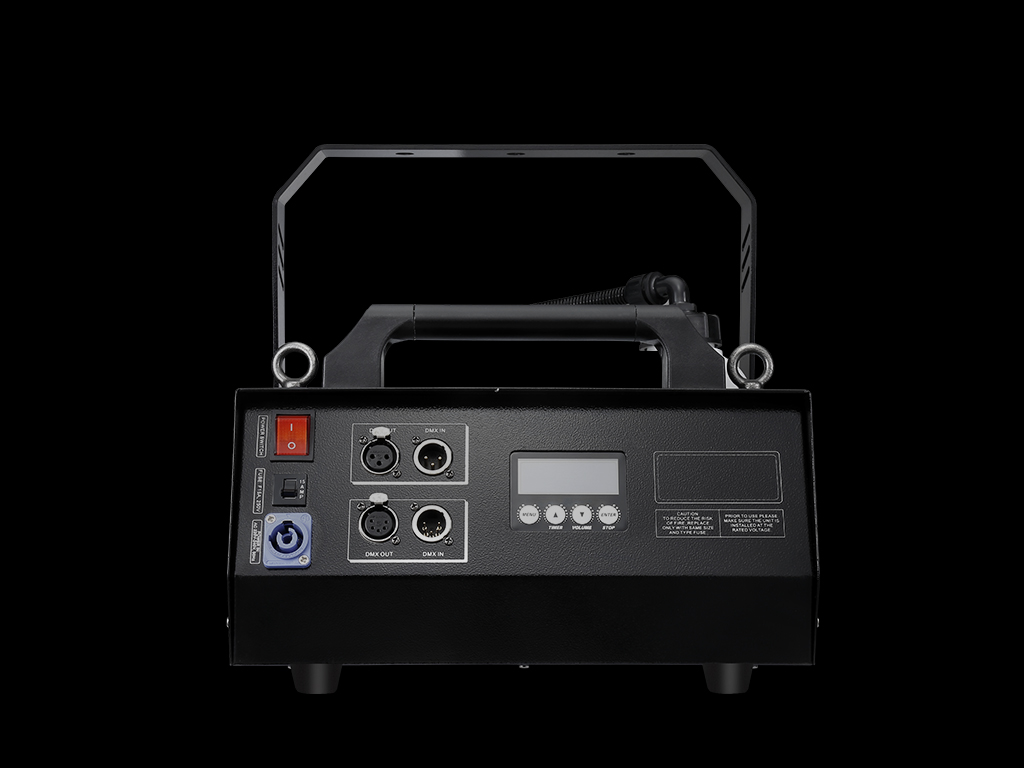

  • On-device Manual Control : LCD control board
  • Wireless Control: W-4 / RF 433MHz / Built-in
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 1
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-4 / RF 433MHz / Transmitter
  • Wired Controller Model: ×

Consumable

  • Consumable: PRO-A or PRO-D Fog Fluid

Weight & Dimensions

  • Net Weight: 18 kg / 39.7 lb.
  • Gross Weight: 22 kg / 48.5 lb.
  • Machine Dimensions: 660 × 382 × 285 mm / 26 × 15 × 11.2 in.
  • Packing Dimensions: 730 × 405 × 330 mm / 28.7 × 15.9 × 13 in.
