DSK-3000VST

DUAL OUTPUT SUPER JET

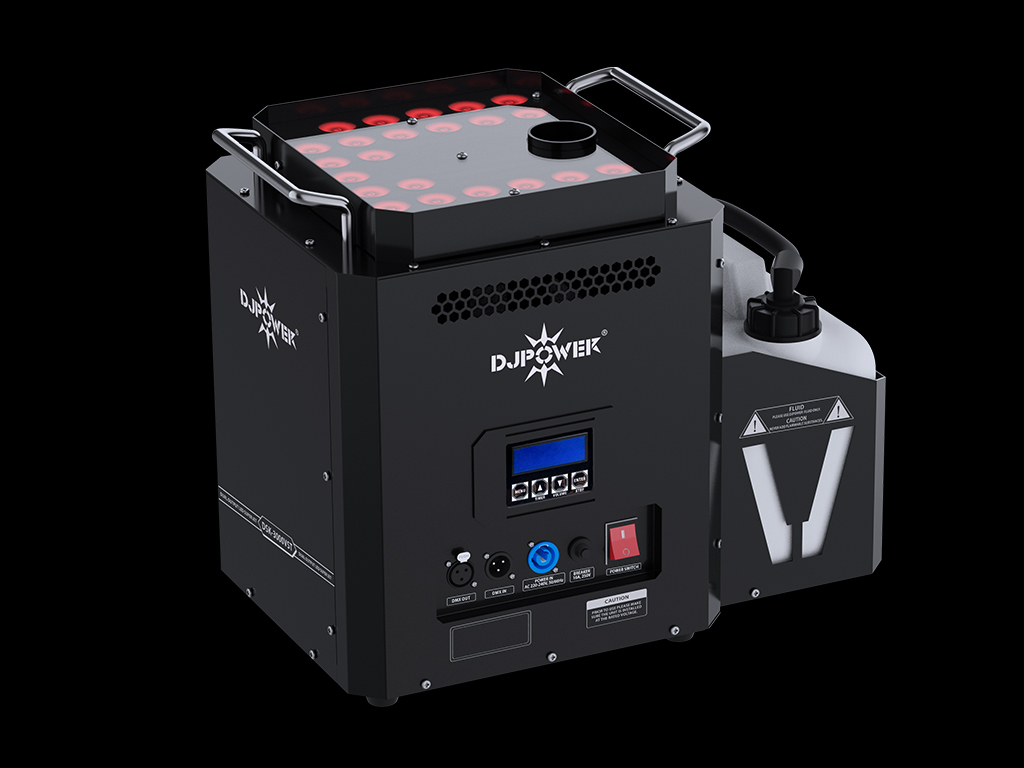

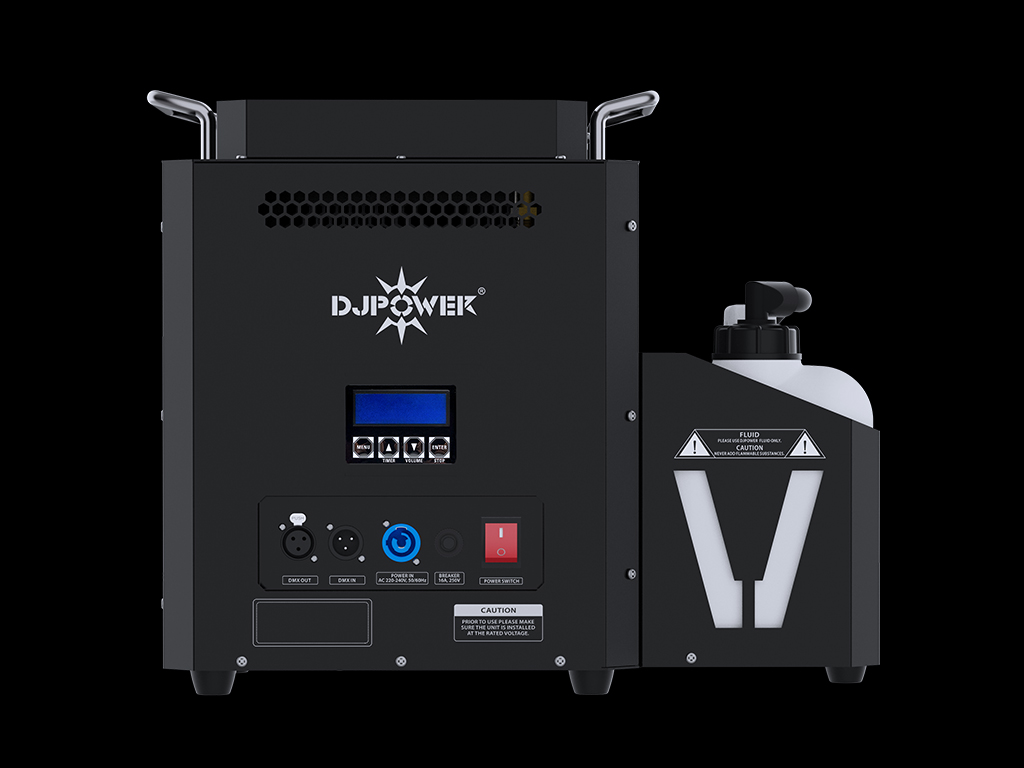

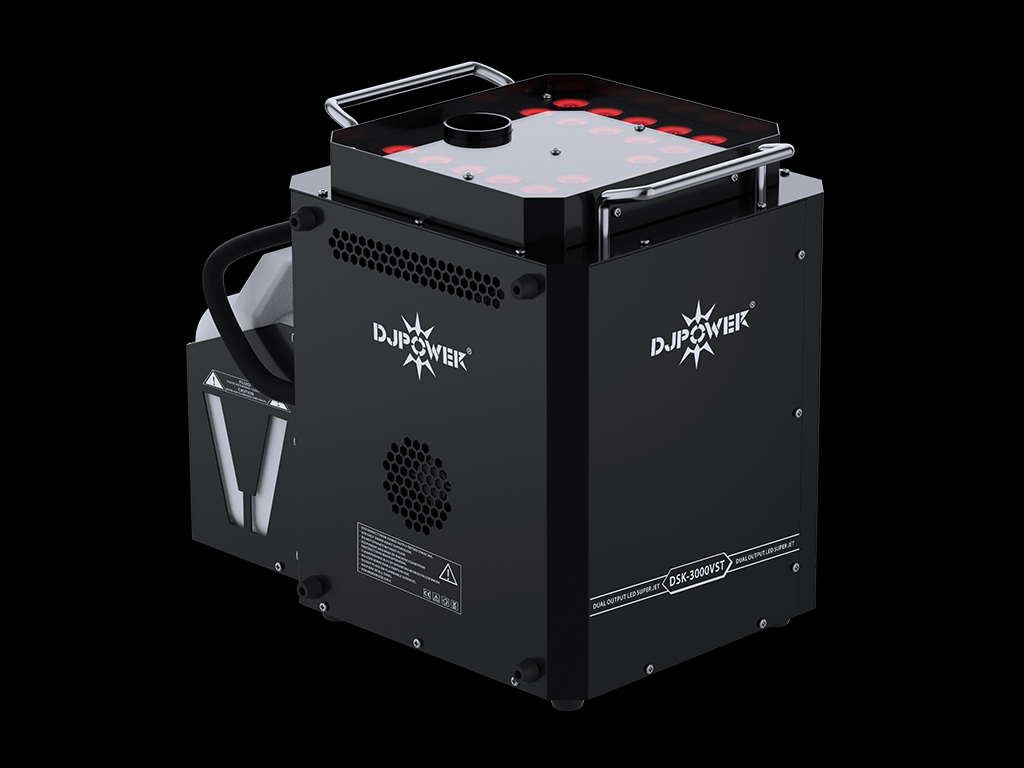

DSK-3000VST is Dual Output LED Vertical Fog Machine Super-Jet, it has the unique "super-jet"technology, the output speed and strength can even be comparable with CO2 jet. 27 pieces 3W LED lights produce colorful air columns, and the visual effect is very shocking! The operation is simple and convenient. The machine is small, powerful in function, and has good eruptioneffect, it is perfect for large clubs, large stage productions, rental companies and production releaseconference.

Features

  • Dual output for strong plume;

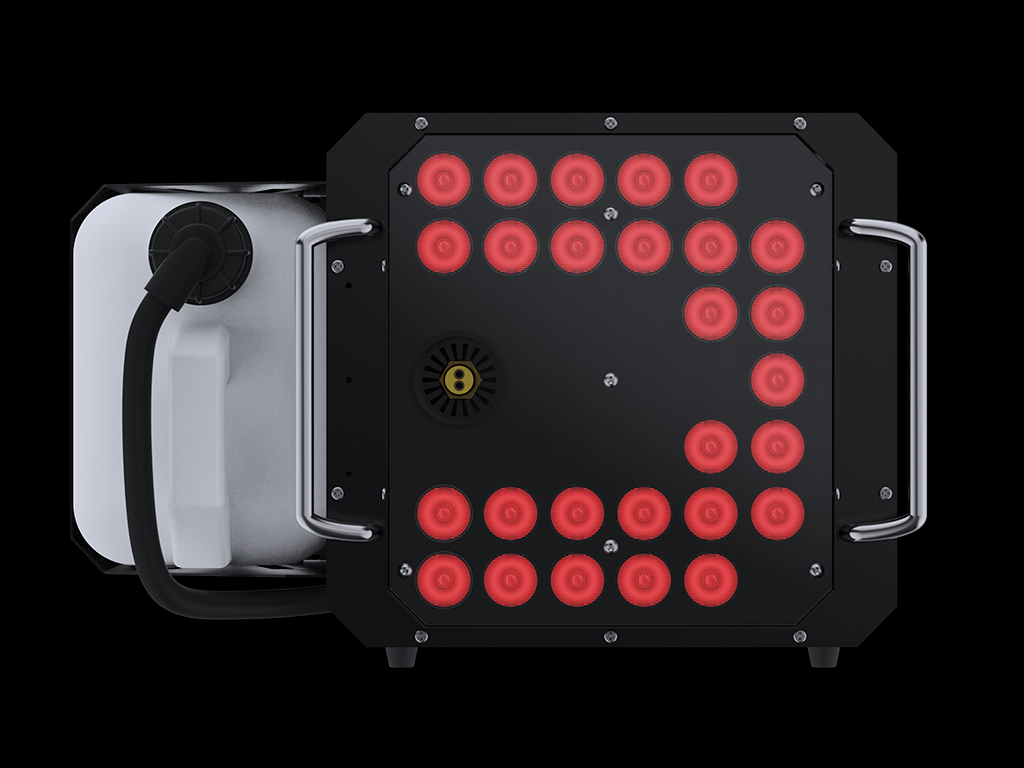

  • 27pcs 3W LEDs, brighter colors;
  • Patent "Super-Jet", the speed of fog output reaction is doubled;
  • “Immediate-stop” patent technology, fog reaction freely.
  • Advanced No-Fluid protection;
  • Built-in LCD control, easy to operate, better experience
  • Use only DJPOWER Professional fog fluid PRO-V, otherwise the machine will spray water or block! Pro-V can help create white thick smoke which completely dissipate in a few seconds. It is very suitable for fog jet effect, and this liquid is specially prepared, with very good light transmission, and the colored smoke column will be brighter.

Specifications

AC Power

  • Input Voltage & Rate: AC 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 16 A, 250 V
  • Total Power Consumption: 3,000 W

Heating

  • Heat Up Time: Appr. 9.5 min

Light Source

  • LED Color: RGBA
  • Power per LED: 3 W
  • Quantity of Inner LED: 27 pcs

Capacity

  • Fluid Tank Capacity: 5 L
  • Output Duration with Fluid Tank Full: Appr. 10.0 min

Output

  • Adjustable Output: ×
  • Max Output Volume: Appr. 70,000 cuft/min
  • Max Output Height: Appr. 10 - 12 m
  • Fluid Consumption (100% Output): Appr. 3 min/L
  • Maximum Continuous Duration (100% Output): Appr. 10 S
  • Continuous Output: ×
  • Cumulative Duration (Fully Loaded, 100% Output): Appr. 12.8 min
  • Consumable Type for Standard Output Test: PRO-V

Placement & Mounting

  • Horizontal: √
  • Inclined: √ (ensure no fluid leaking)
  • Vertical: √
  • Hang Upside Down: √
  • Rigging & Trussing: √

Control

  • On-device Manual Control: Touch LCD control board
  • Wireless Control: ×
  • Wired Control: ×
  • Control Protocol: DMX512
  • DMX Channel Range: 9 or 10

Certification

  • CE: √
  • RoHS: √

Consumable

    Consumable: PRO-V

Weight & Dimensions

  • Net Weight: 24.8 kg
  • Gross Weight: 26.3 kg
  • Machine Dimensions: 469 × 296 × 385 mm
  • Packing Dimensions: 560 × 385 × 460 mm
