F-2

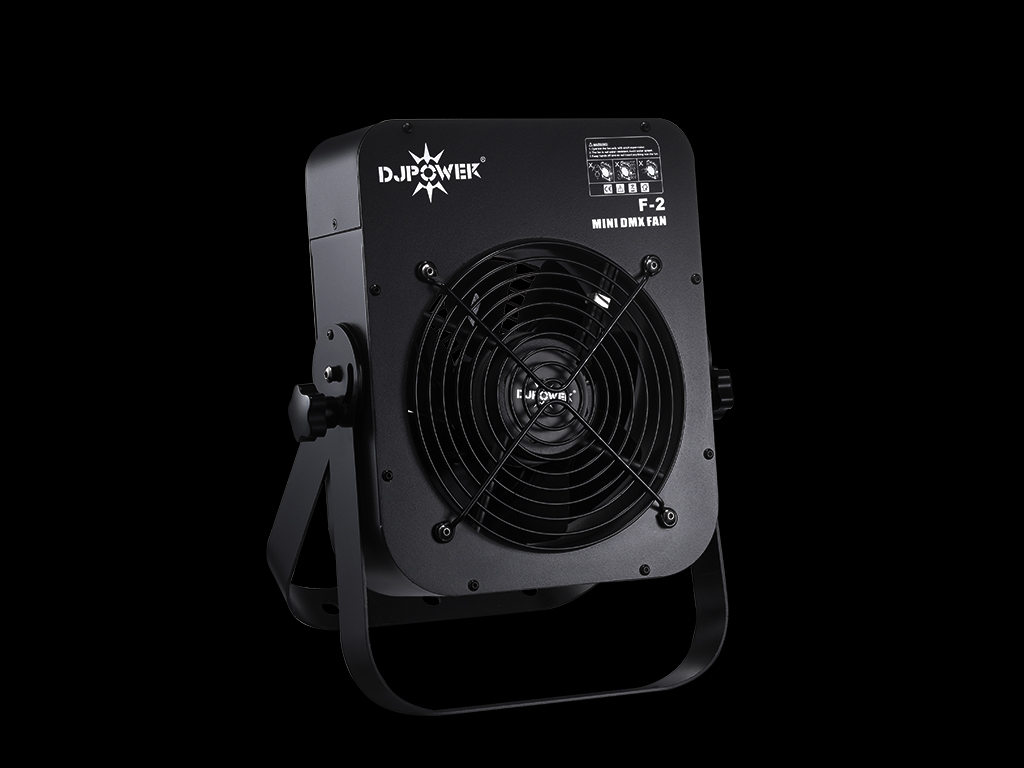

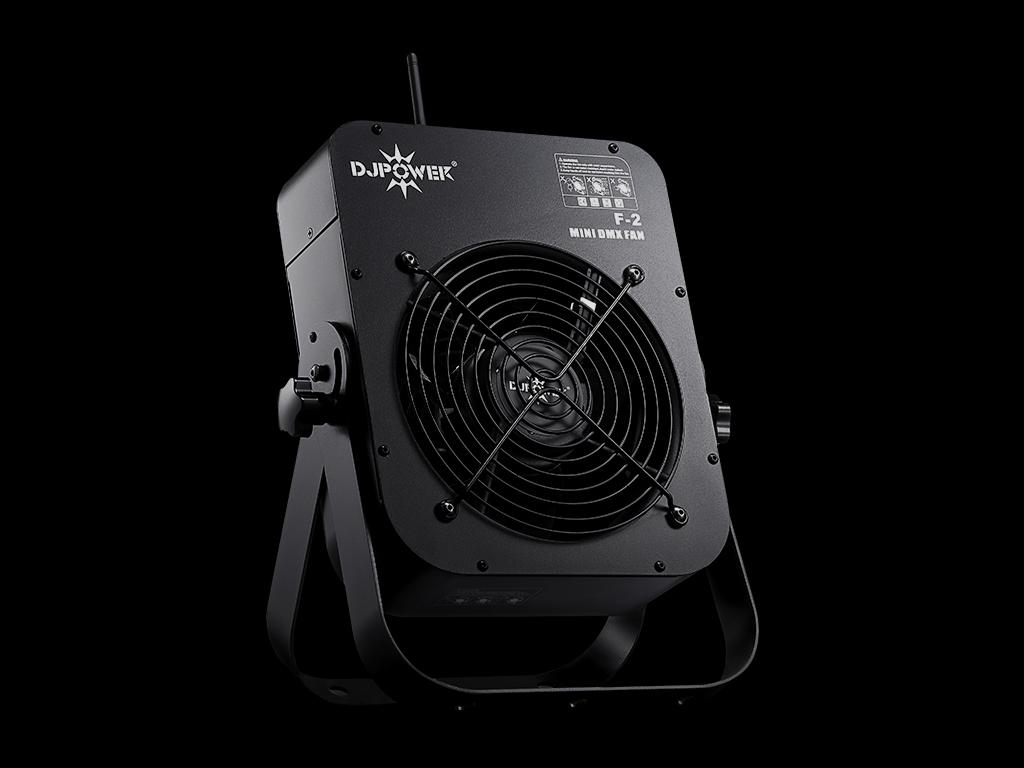

MINI DMX FAN

F-2 is a mini but all-purpose stage fanfeatures 4 control options, wired control, low power consumption, adjustableblowing directions, durable metal housing and compact size. In addition to thebuilt-in DMX control and the manual knob, wire and wireless controllers areoptional to cope with diverse needs. External antenna provides high-sensitivityremote control. Total power consumption is merely 60W.The internal bracket enables various output directions within 100 degrees whilehanged or placed on the floor. Solid and handy design allows easy carry andstorage.

Features

  • High-strength blades and metal shell, strong and durable;
  • 0 to 100% adjustable wind speed.
  • Hung or placed on the floor.
  • 100° adjustable angle wind outlet;
  • Anti-loose power plug;
  • Built-in digital display control, wired control, wireless remote control, and DMX control;
  • Professional auxiliary appliance, use with snow machine or bubble machine, snow or bubble can be spread further and higher.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Fuse (F)
  • Current Limiter Specifications: 2 A, 250 V
  • Total Power Consumption: 60 W
  • Operating Current: 0.3 A
  • Power Input Connector: Lockable PowerCon
  • Power Output Connector (Daisy Chained): Lockable PowerCon

Fan

  • Type: AC Centrifugal Blower
  • Quantity: 1 pc
  • Input Voltage: 230 V
  • Power Consumption of Each Unit: 60 W
  • Total Power Consumption: 60 W
  • Ouput Adjustable: √
  • Adjustment Range: 0-100

Output

  • Adjustable Volume: √
  • Volume Adjustment Level/Range: 0-100
  • Maximum Continuous Duration @ full volume: unlimited
  • Continuous Output : √
  • Max Continuous Output Level: 100%

Features

  • Physical Thermostat: ×
  • Electronic Thermo-Control: √
  • Adjustable Output : √
  • Adjustable Fan Speed: √
  • No-Fluid Protection: ×

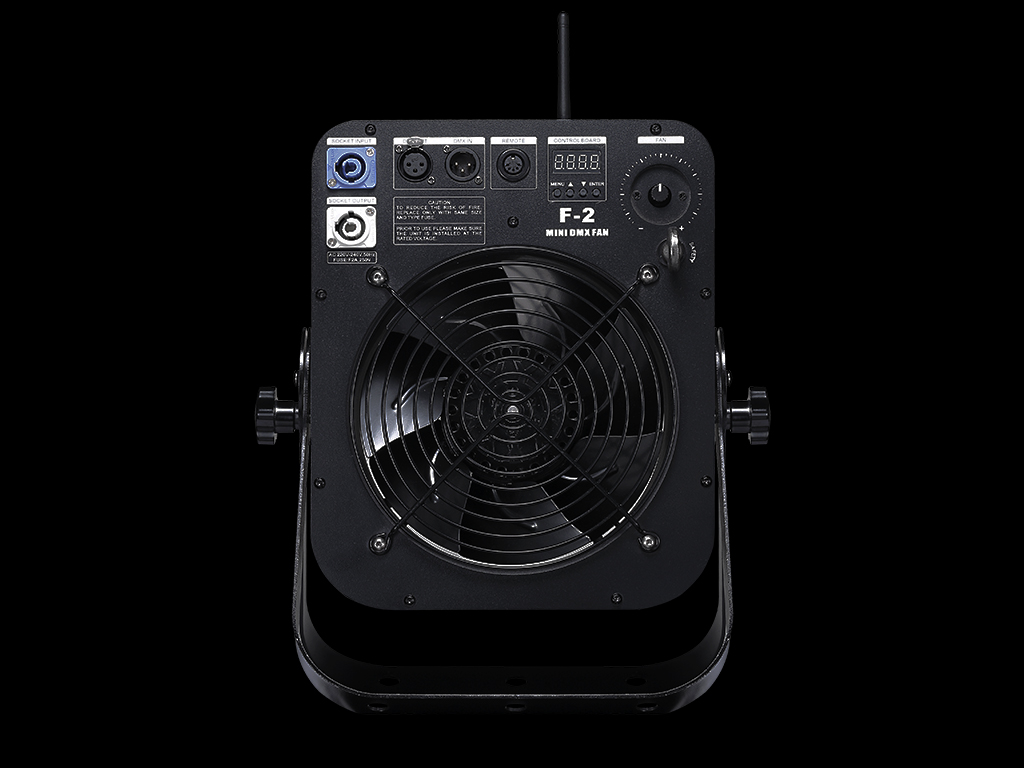

Control

  • On-device Manual Control : 7-seg digital display & Knob(s)
  • Wireless Control: W-5 / RF 433MHz / Built-in
  • Wired Control: FK-1
  • Control Protocol: DMX-512
  • DMX Channel Range: 1
  • Data Connectors: 3-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-5 / RF 433MHz / Transmitter
  • Wired Controller Model: FK-1

Weight & Dimensions

  • Net Weight: 6.5 kg / 14.3 lb.
  • Gross Weight: 7 kg / 15.4 lb.
  • Machine Dimensions: 330 × 128 × 388 mm / 13 × 5 × 15.3 in.
  • Packing Dimensions: 375 × 175 × 455 mm / 14.8 × 6.9 × 17.9 in.
