R-4

MINI LED CONFETTI MACHINE

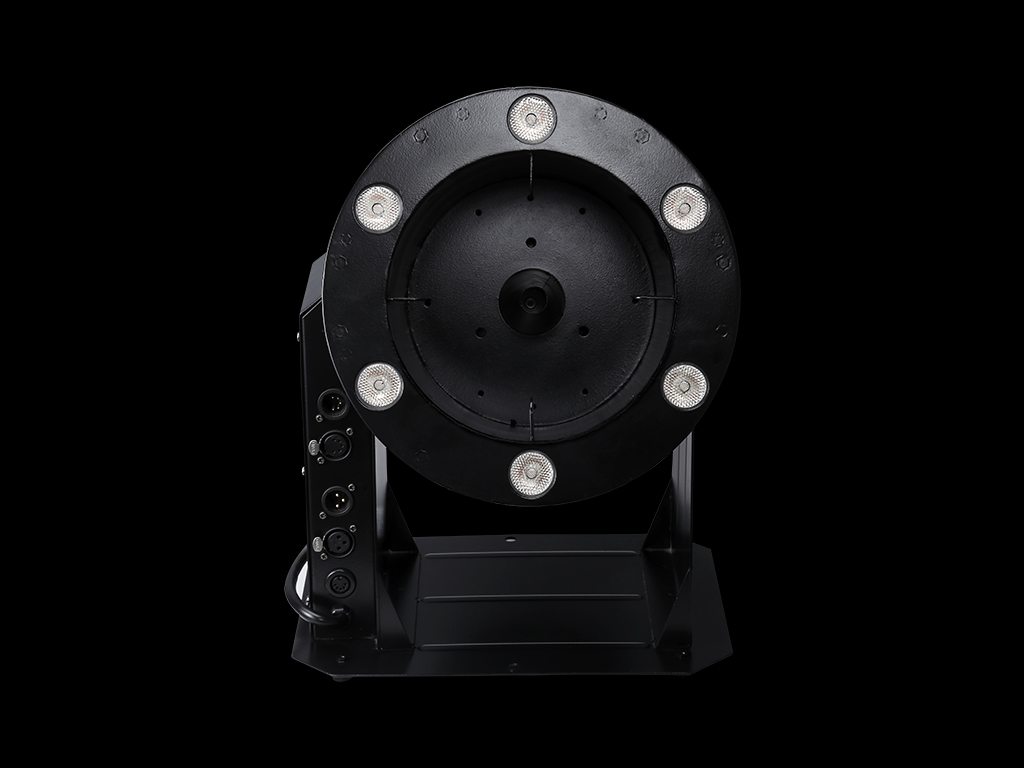

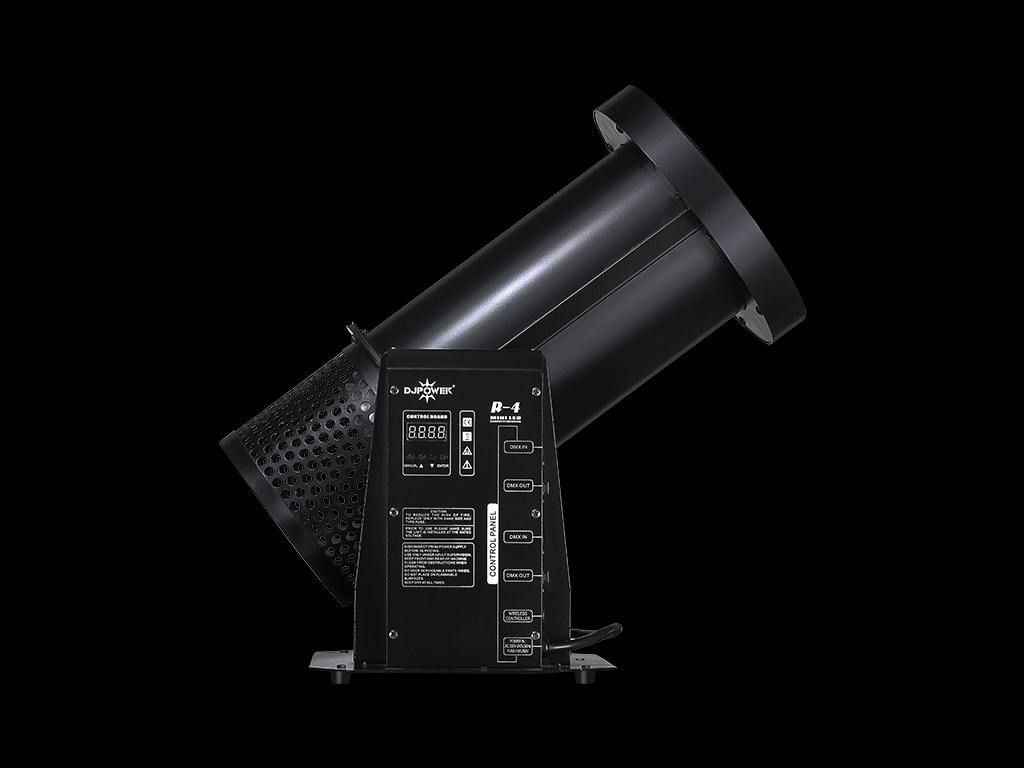

R-4 is best-selling mini confetti blower. Use fan as power to blow confetti to sky, bringing festivity atmosphere to the ceremony and performance. R-4 is very compact and convenient to use. 6 pcs 8 W RGBA quad LEDs add more colors to confetti in the darkness.

Features

  • Easy, single person setup and operation;
  • No compressed air or CO2 required—just add confetti;
  • Super stable and durable;
  • 6 pcs 8 W RGBA quad LEDs;
  • Wireless control, DMX control and built-in digital display panel, convenient address code set.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Fuse (F)
  • Current Limiter Specifications: 8 A, 250 V
  • Total Power Consumption: 1,500 W
  • Operating Current: 6.5 A
  • Power Input Connector: Hard-wired

Light Source

  • LED Color: RGBA
  • LED Type: Quad-Color
  • Power per LED: 8 W
  • Quantity of LED: 6 pcs

Output

  • Adjustable Volume: ×
  • Volume Adjustment Level/Range: 0-180°
  • Max Output Height: (90°) Appr. 5 m
  • Max Output Distance : (45°) Appr. 5.5 m
  • Max Coverage: 30 ㎡
  • Maximum Continuous Duration @ full volume: Appr. 20 sec

Control

  • On-device Manual Control : 7-seg digital display
  • Wireless Control: W-2 Upgrade / RF 315MHz / External receiver
  • Control Protocol: DMX-512
  • DMX Channel Range: 9
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-2 Upgrade / RF 315MHz / Transmitter & Receiver

Consumable

  • Consumable: Confetti

Weight & Dimensions

  • Net Weight: 10 kg / 22 lb.
  • Gross Weight: 11 kg / 24.3 lb.
  • Machine Dimensions: 300 × 250 × 503 mm
  • Packing Dimensions: 395 × 300 × 555 mm
