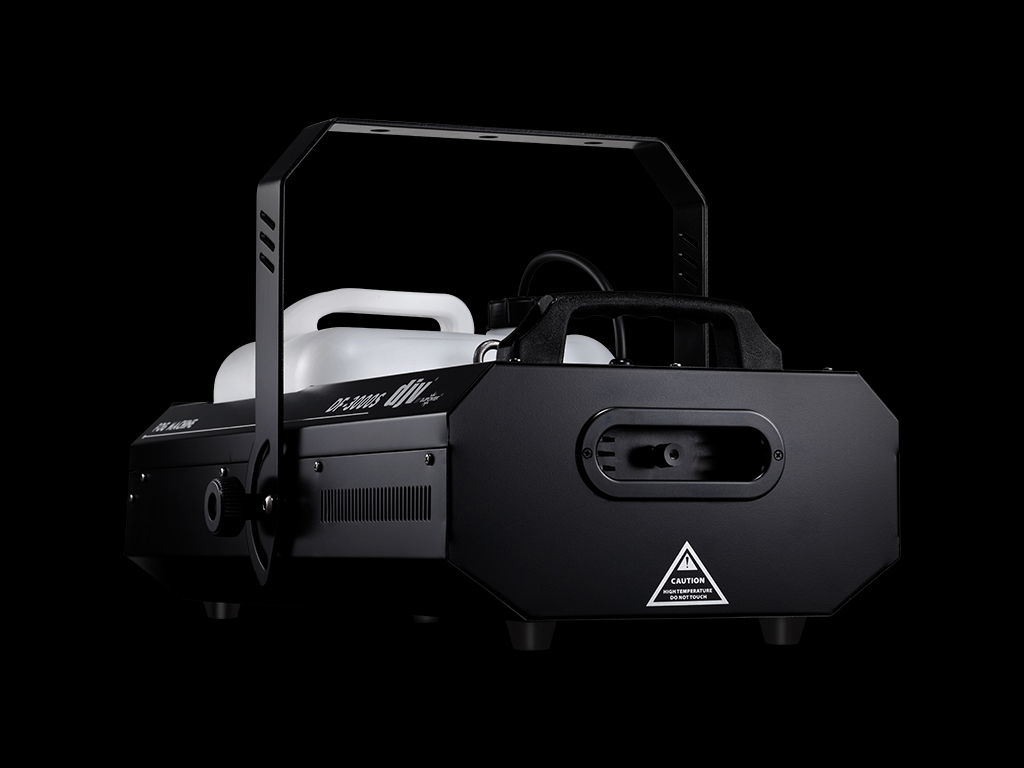

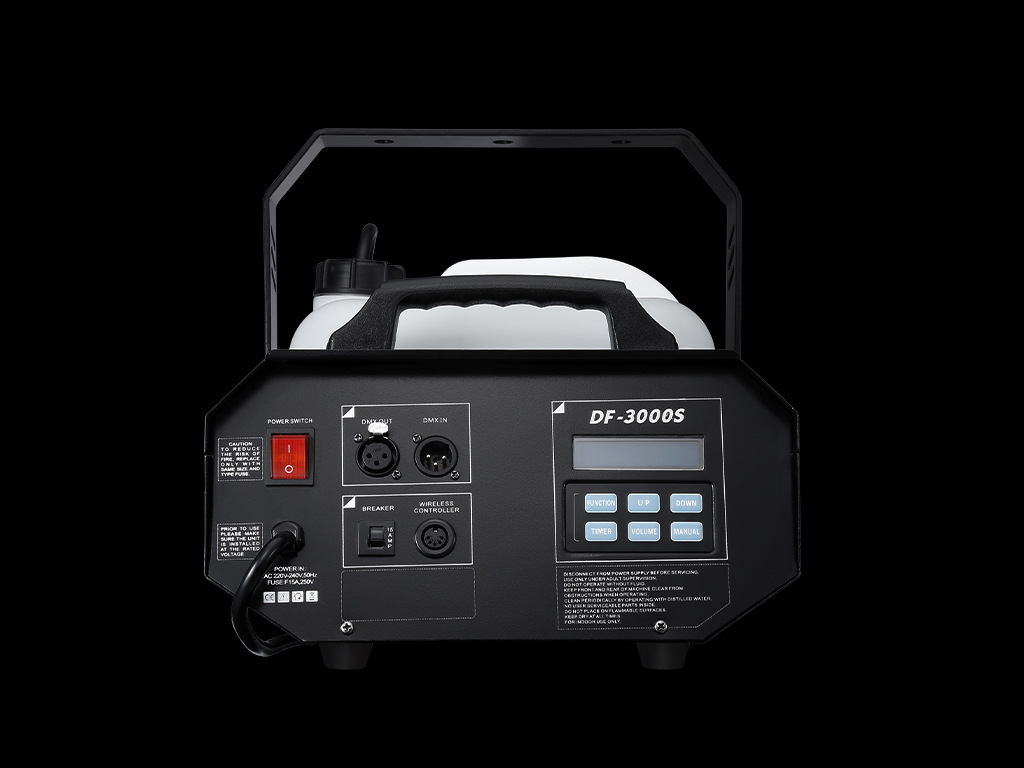

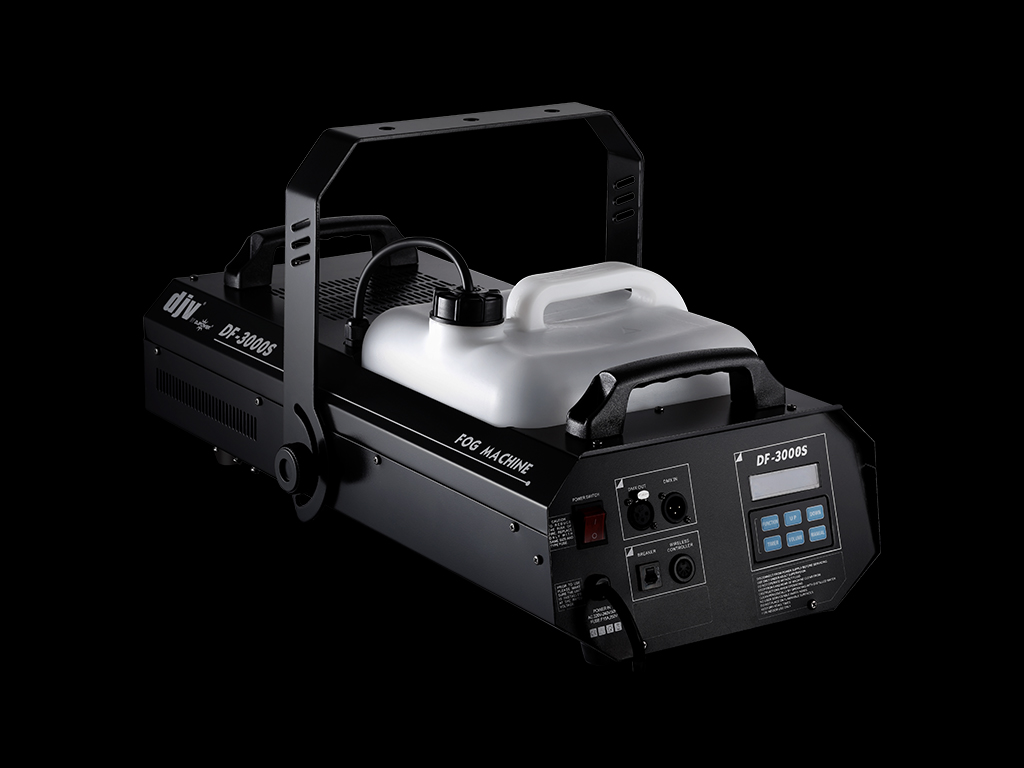

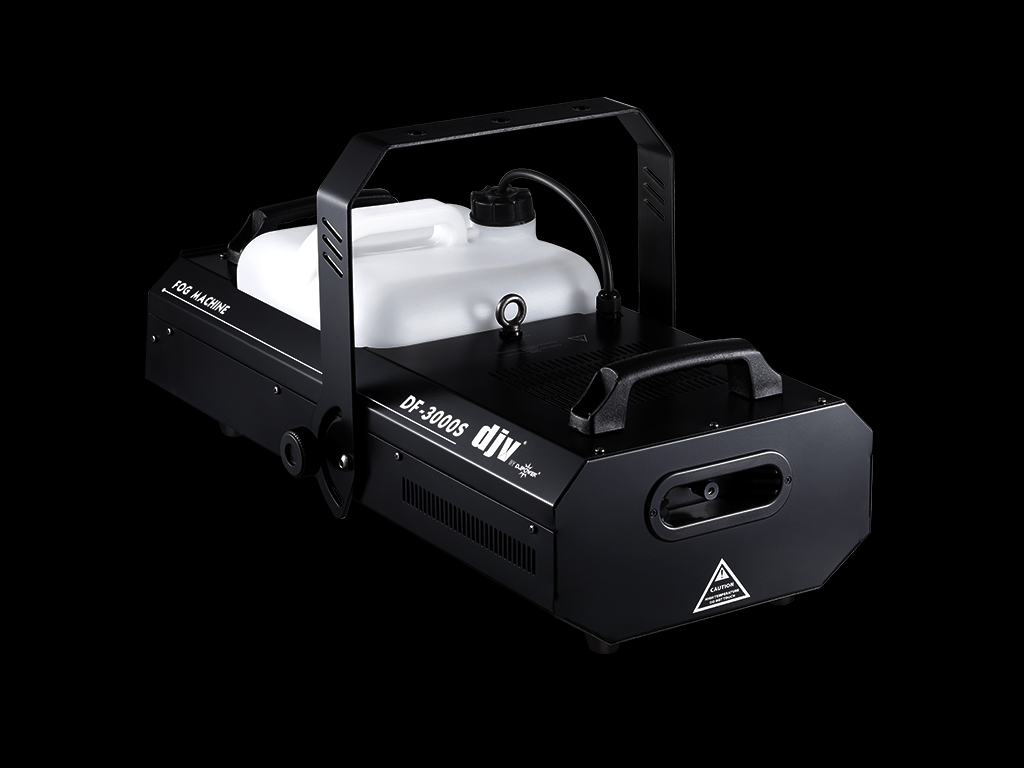

DF-3000S

FOG MACHINE

This model is with high cost performance!Massive fog output satisfies your need and expectation.

Features

  • Stable performance and enormous fog output;
  • Equipped with electronic temperature control system, high-accuracy temperature control PCB and new professional atomizer;
  • Easy set timing, quantitative work;
  • 3-pin DMX512 control socket;
  • No-fluid protection for safety use;
  • Built-in LCD control and wireless control. Remote controller is convenient for group use, several units used together can be selectable control;
  • Please use DJPOWER professional fog fluid DJV-001 or D-01.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 10 A, 250 V
  • Total Power Consumption: 1,800 W
  • Operating Current: 7.8 A
  • Power Input Connector: Hard-wired

Heating

  • Heat Up Time: Appr. 5.0 min
  • Heater Type: Aluminum Heater Block

Capacity

  • Fluid Tank Capacity : 9 L

Output

  • Adjustable Volume: √
  • Volume Adjustment Level/Range: 1-100%
  • Max Output Volume: Appr. 35,000 cuft/min
  • Max Output Distance : Appr. 8 m
  • Fluid Consumption @ full volume : Appr. 5.7 min/L
  • Maximum Continuous Duration @ full volume: Appr. 20 sec
  • Continuous Output : ×
  • Max Continuous Output Level: 100%
  • Fully-loaded Cumulative Output Duration @ full volume: Appr. 51 min

Features

  • Physical Thermostat: √
  • Electronic Thermo-Control: √
  • No-Fluid Protection: √
  • Instant-Stop: ×

Control

  • On-device Manual Control : LCD control board
  • Wireless Control: W-2 / RF 315MHz / External receiver
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 1
  • Data Connectors: 3-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-2 / RF 315MHz / Transmitter & Receiver
  • Wired Controller Model: ×

Consumable

  • Consumable: DJV-001 or D-01 or D-03 Fog Fluid

Weight & Dimensions

  • Net Weight: 14 kg / 30.9 lb.
  • Gross Weight: 16 kg / 35.3 lb.
  • Machine Dimensions: 638 × 359 × 275 mm / 25.1 × 14.1 × 10.8 in.
  • Packing Dimensions: 700 × 375 × 335 mm / 27.6 × 14.8 × 13.2 in.
