H-3

PRO HAZE MACHINE

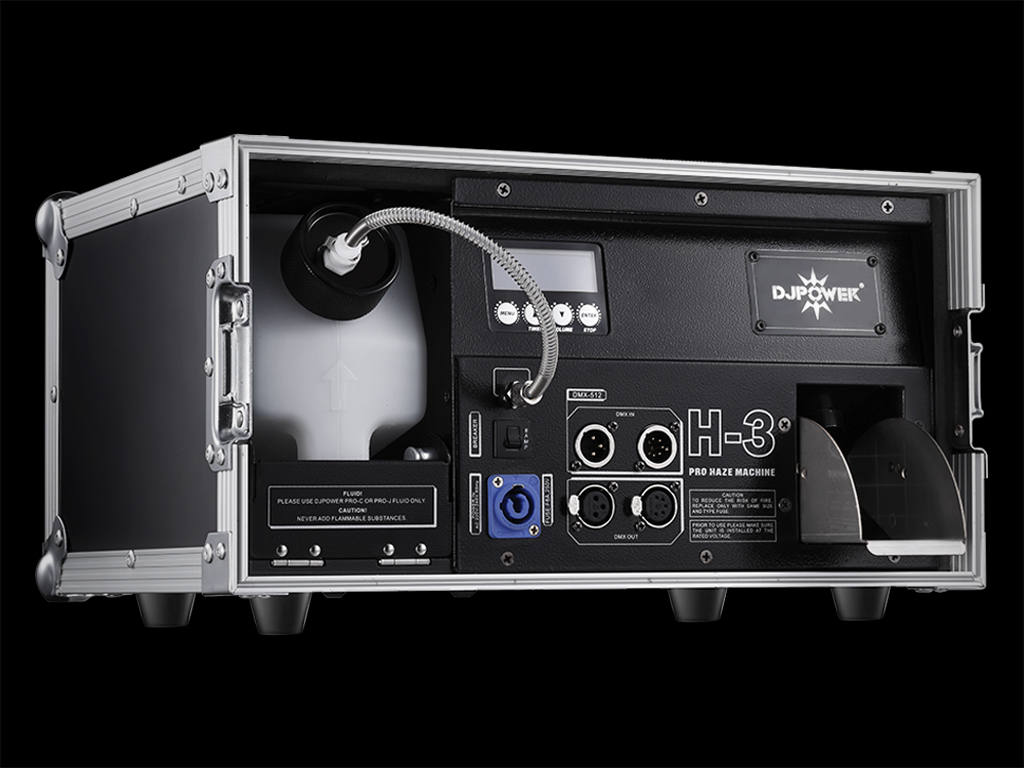

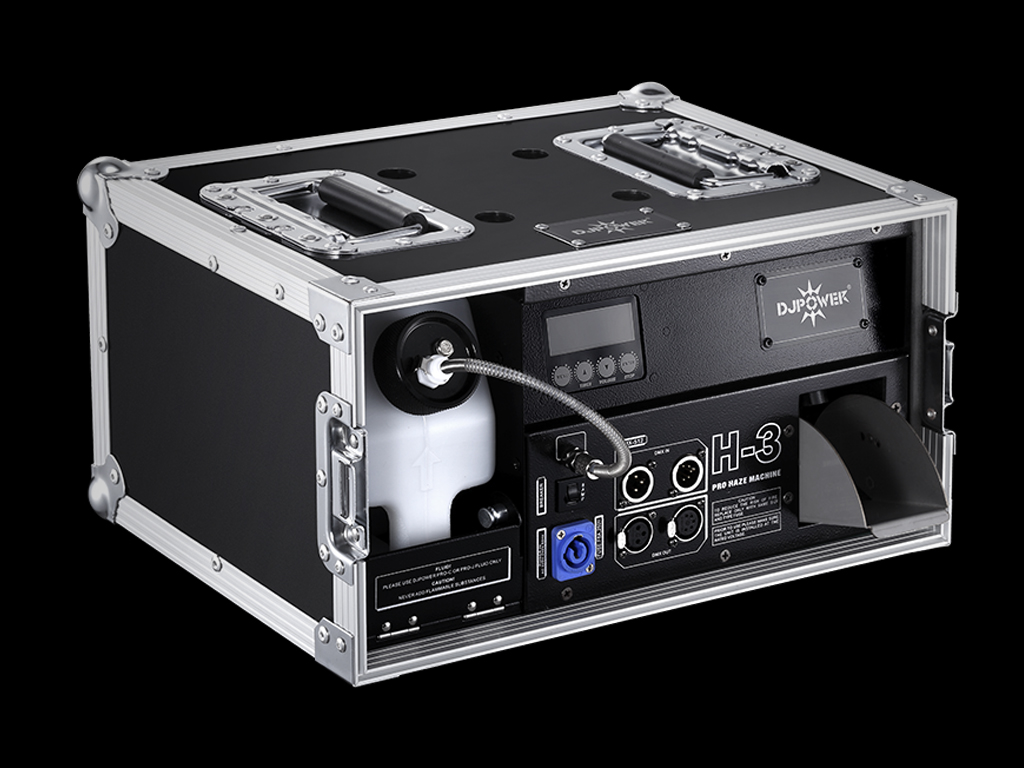

H-3 is a top of the range water-based haze machine designed for the highly demanding professional market.  It comes pre-built-in aluminum alloy flight case and can be stacked one on another. Robust yet compact size and lightweight, its ability to produce exceptionally fine atmospheric haze in a short period of time while operating at low noise levels makes it an ideal choice for rental houses, high-end bars, small shows, theatres and more.

Features

  • Continuous output even and light haze;
  • Output 1-100% precisely adjustable;
  • Independent variable haze and fan control;
  • Powerful fan with low noise;
  • Low fluid consumption;
  • New heating system only 50 seconds heat-up time;
  • Advanced No-Fluid protection;
  • Compact size, and convenient for transportation;
  • Aluminum alloy flight case;
  • Built-in Omega mounting hole;
  • Angle-adjustable haze outlet;
  • Anti-slip fluid tank;
  • Anti-leaking fluid system with quick-connect fittings;
  • Anti-loose power plug;
  • Built-in LCD control, 3-pin and 5-pin DMX control;
  • Water-based fluid, no burnt odor, no harm to the optic;
  • Please use DJPOWER professional haze fluid PRO-C or PRO-J.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 8 A, 250 V
  • Total Power Consumption: 1,100 W
  • Operating Current: 4.8 A
  • Power Input Connector: Lockable PowerCon

Heating

  • Heat Up Time: Appr. 50 s
  • Heater Type: Fast Coil Heater

Capacity

  • Fluid Tank Capacity : 0.92 Gal.

Output

  • Adjustable Volume: √
  • Volume Adjustment Level/Range: 1-100%
  • Max Output Volume: Appr. 12,000 cuft/min
  • Max Coverage: Appr. 225 ㎡(5 min)
  • Fluid Consumption @ full volume : Appr. 12.0 mL/min
  • Maximum Continuous Duration @ full volume: Unlimited
  • Continuous Output : √
  • Max Continuous Output Level: 100%
  • Fully-loaded Cumulative Output Duration @ full volume: Appr. 291 min
  • Consumable Type for Standard Output Test: PRO-C/PRO-J

Features

  • Physical Thermostat: √
  • Electronic Thermo-Control: √
  • Adjustable Output : √
  • Adjustable Fan Speed: √
  • No-Fluid Protection: √

Control

  • On-device Manual Control : LCD control board
  • Wireless Control: ×
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 2
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Flight Case: √
  • Power Cord: √
  • Wireless Controller Model: ×
  • Wired Controller Model: ×

Consumable

  • Consumable: PRO-JS or PRO-C or PRO-J Haze Fluid

Weight & Dimensions

  • Net Weight: 16 kg / 35.3 lb.
  • Gross Weight: 18 kg / 39.7 lb.
  • Machine Dimensions: 425 × 390 × 242 mm / 16.7 × 15.4 × 9.5 in.
  • Packing Dimensions: 515 × 475 × 330 mm / 20.3 × 18.7 × 13 in.
