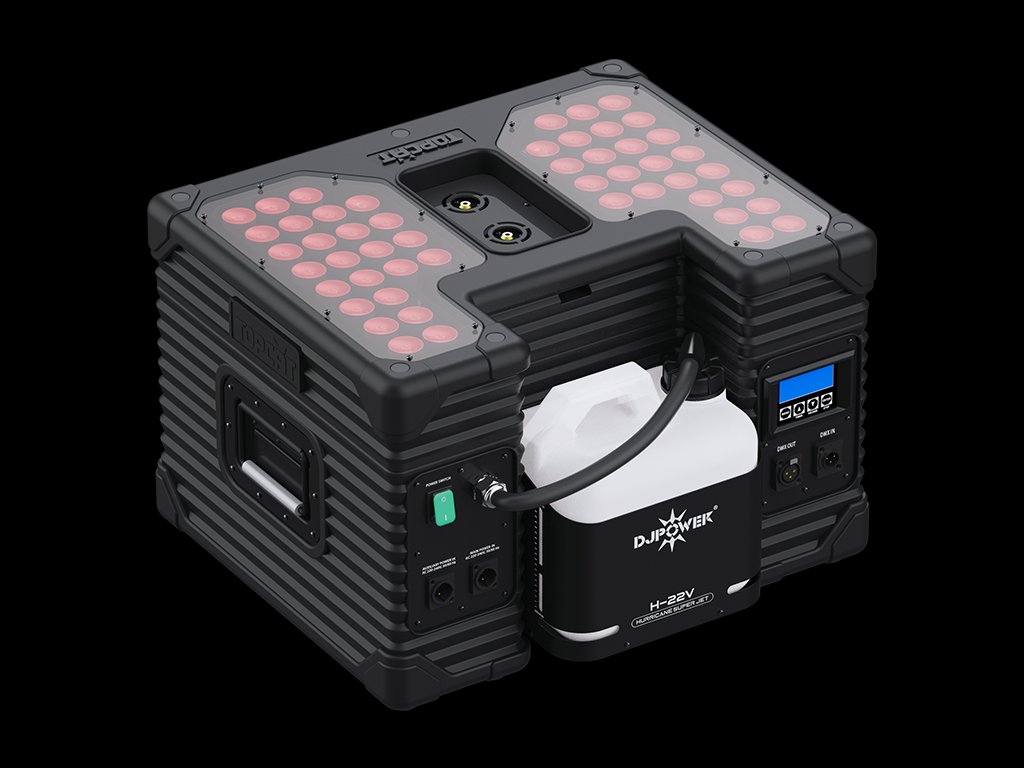

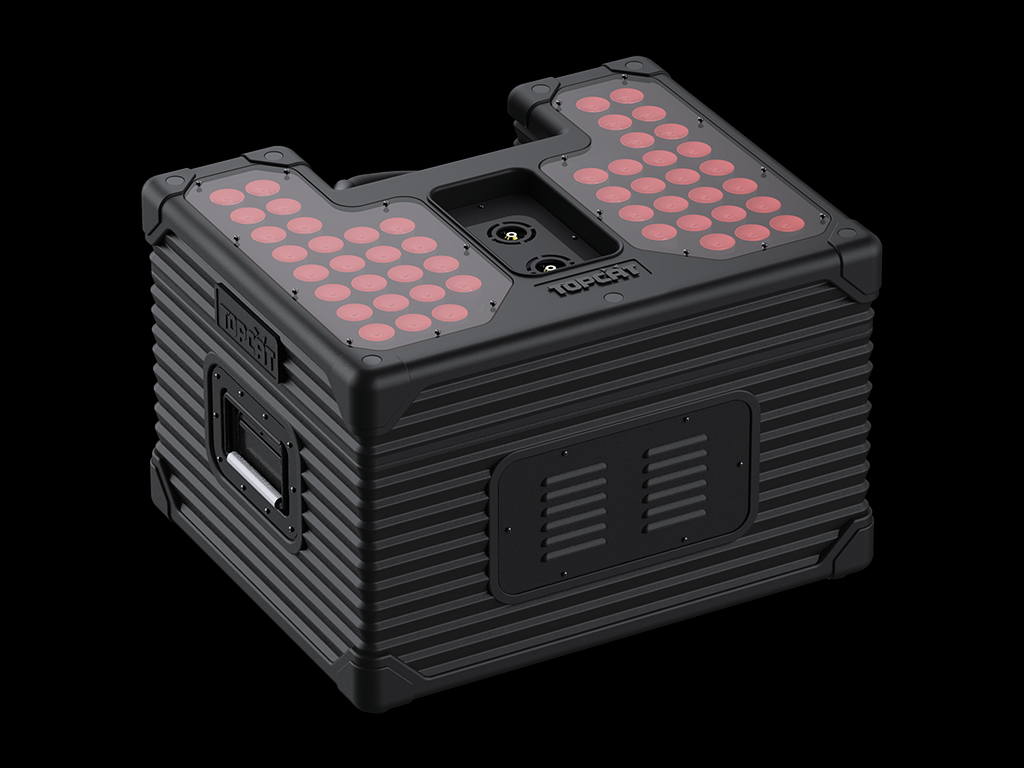

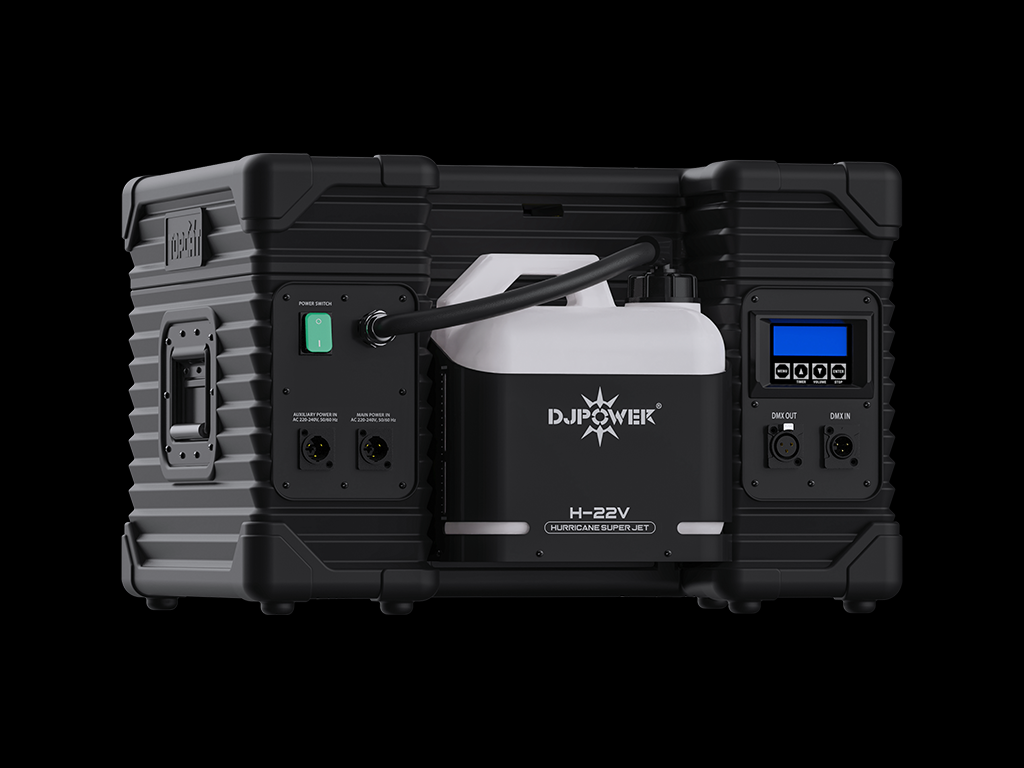

H-22V

HURRICANE SUPER JET

H-22V is a new rainproof high-speed dual nozzle super jet launched by DJPOWER. It is specially designed for outdoor use and powerful fog output up to 20 meters. With "Super-Jet" (Patent number: ZL 201520934500.2) and “Immediate-stop” (Patent number: ZL 201320700998.7) patent technology, the output speed and strength can be comparable with CO2 jet. The housing is made of high-strength integrated composite materials, which is rust-free, strong and durable. The IP grade is IP53. It is suitable for outdoor performances, big bars, cultural tourism projects and other activities.

Features

  • High-strength integrated composite housing;
  • Rainproof structural design. Rainproof grade is IP53;
  • Patent "Super-Jet", the much faster output speed;
  • “Immediate-stop” patent technology, fog reaction freely;
  • With 48pcs 6W RGB LED, produce colorful fog columns；
  • Dual output creates huge fog column up to 20 meters；
  • Advanced No-Fluid protection；
  • Anti-loose power plug;
  • Built-in LCD control and DMX512/RDM control.

Please use DJPOWER professional quick dissipating fog fluid PRO-V.

Note:The actual effect may be affected by the usage environment.

Specifications

AC Power

  • Input Voltage & Rate: AC 220-240 V, 50/60 Hz
  • Total Power Consumption:3,500 W

Heating

  • First heat-up time：Appr. 25 min

Light Source

  • Power per LED:6 W
  • Quantity of LED: 48 pcs
  • LED Color: RGB

Output

  • Max Output Volume: Appr. 276,000 cuft/min
  • Max Output Height: Appr. 20 m
  • Fluid Consumption @ full volume : Appr. 0.72 min/L
  • Maximum Continuous Duration @ full volume: Appr. 7 s

Control

  • On-device Manual Control : LCD control board
  • Control Protocol: DMX512/RDM
  • DMX Channel Range: 9

Capacity

  • Fluid Tank Capacity : 5 L
  • Fully-loaded Cumulative Output Duration @ full volume: Appr. 3.6 min

Weight & Dimensions

  • Net Weight:46.5 kg
  • Gross Weight: 53 kg
  • Machine Dimensions: 520 × 478 × 345 mm
  • Packing Dimensions: 665 × 630 × 480 mm

Consumable

  • Consumable: PRO-V
