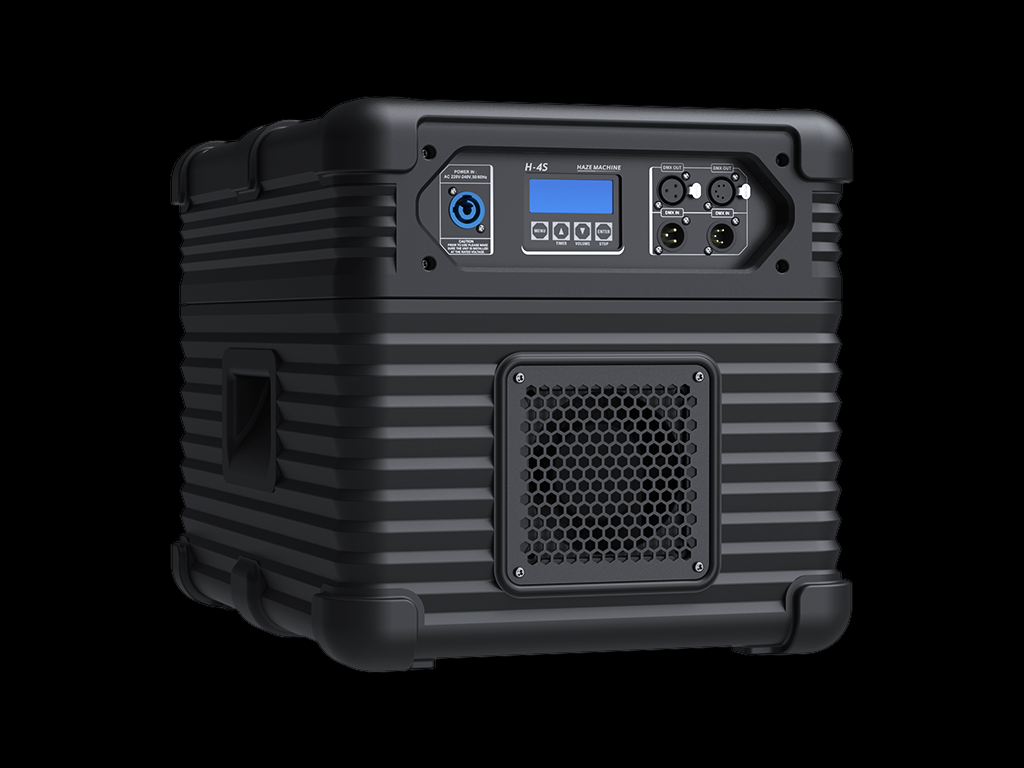

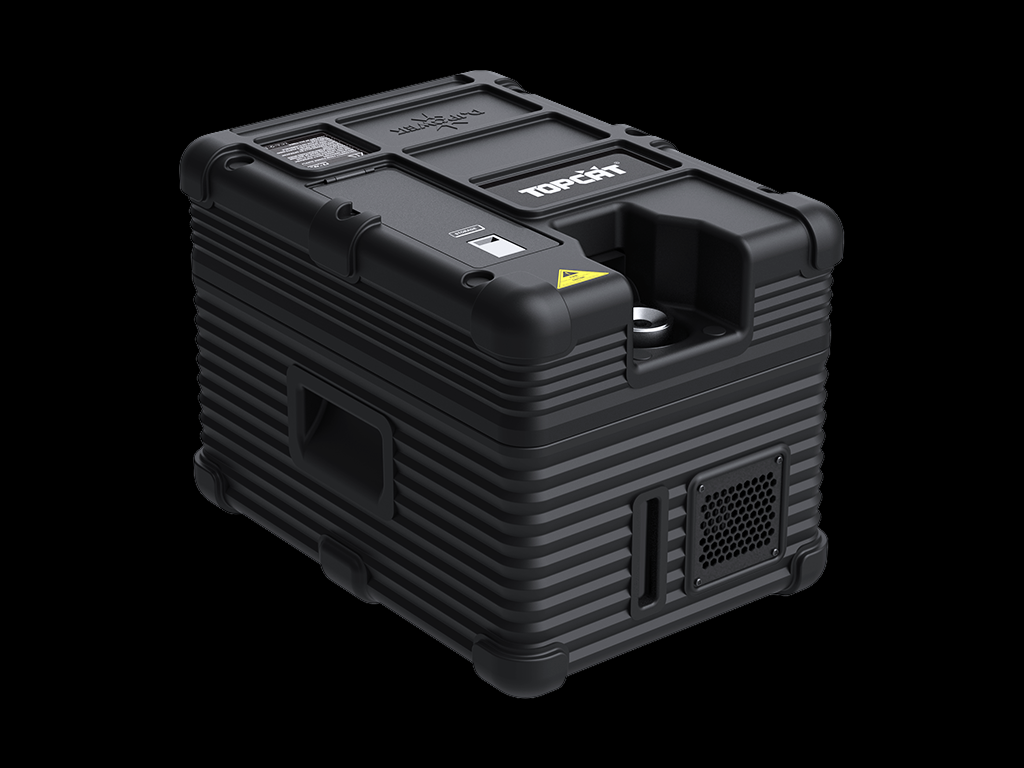

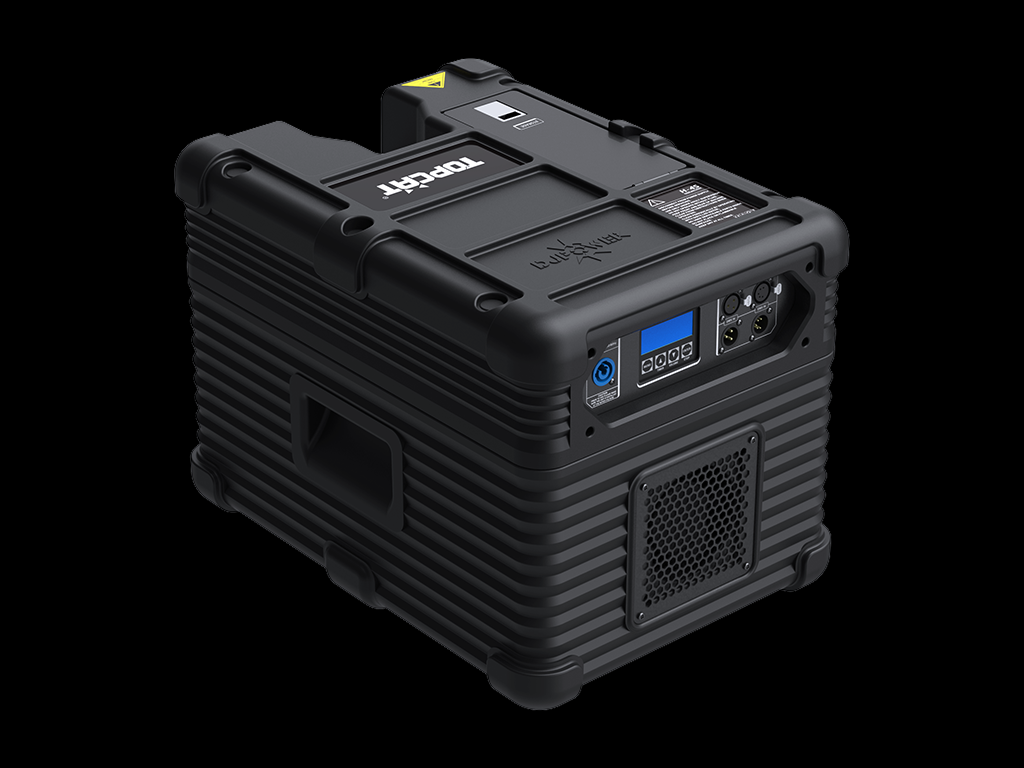

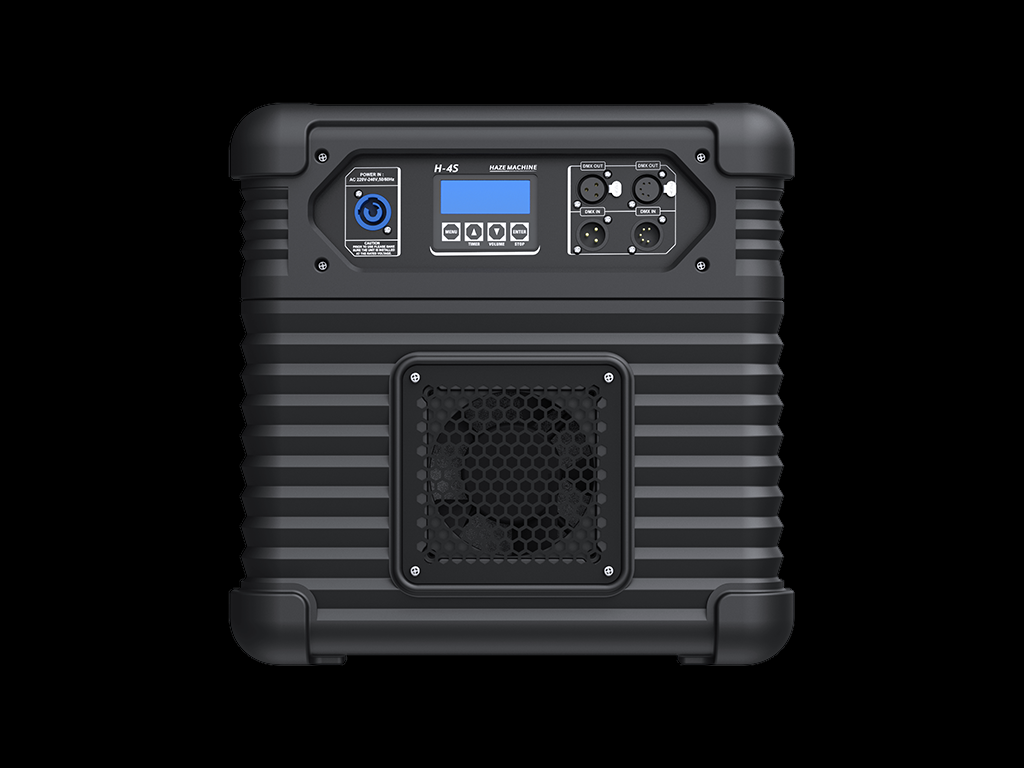

H-4S

OIL-BASED HAZE MACHINE

H-4S is a oil-based haze machine. Using high-pressure atomization technology, no heating system, to produce haze without for pro-heat up. The housing is made of high-strength composite material, one-time molding, no rust, lighter weight and more durable. Updated nozzle provides better haze effect. Dry and delicate haze and good air retention, suit for all kinds of indoor and outdoor performances.

Features

  • Integration in a stackable flight case makes the DMX hazer tough, durable and easy to carry;
  • Low-noise operation without air compressor ideal for theater and stage applications;
  • Produces fine, translucent haze without nebulizing the room at the same time;
  • Ideal for accentuating light and laser beams;
  • Fog output and fan speed variably adjustable via rotary controls;
  • DMX interface with 3-pin connectors;
  • DMX settings via control panel with LED display;
  • Temperature control via thermo switch;
  • Removable tank;
  • Low fluid sensor;
  • Operates on standard water based fluid Product Overview;

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Total Power Consumption: 550 W

Capacity

  • Fluid Tank Capacity : 2.5 L

Output

  • Max Output Volume: Appr. 3,200 cuft/min
  • Max Output Coverage:Appr.200 m²
  • Fluid Consumption @ full volume : Appr. 25 h/L

IP Rate

  • IP Rate: IPX1

Control

  • Control Protocol: DMX-512
  • DMX Channel Range: 2

Consumable

  • Consumable: PRO-H1L Oil Base Haze Fulid

Weight & Dimensions

  • Net Weight: 31 kg
  • Gross Weight: 32.5 kg
  • Machine Dimensions: 524 × 374 × 371 mm
  • Packing Dimensions: 612 × 462 × 465 mm
