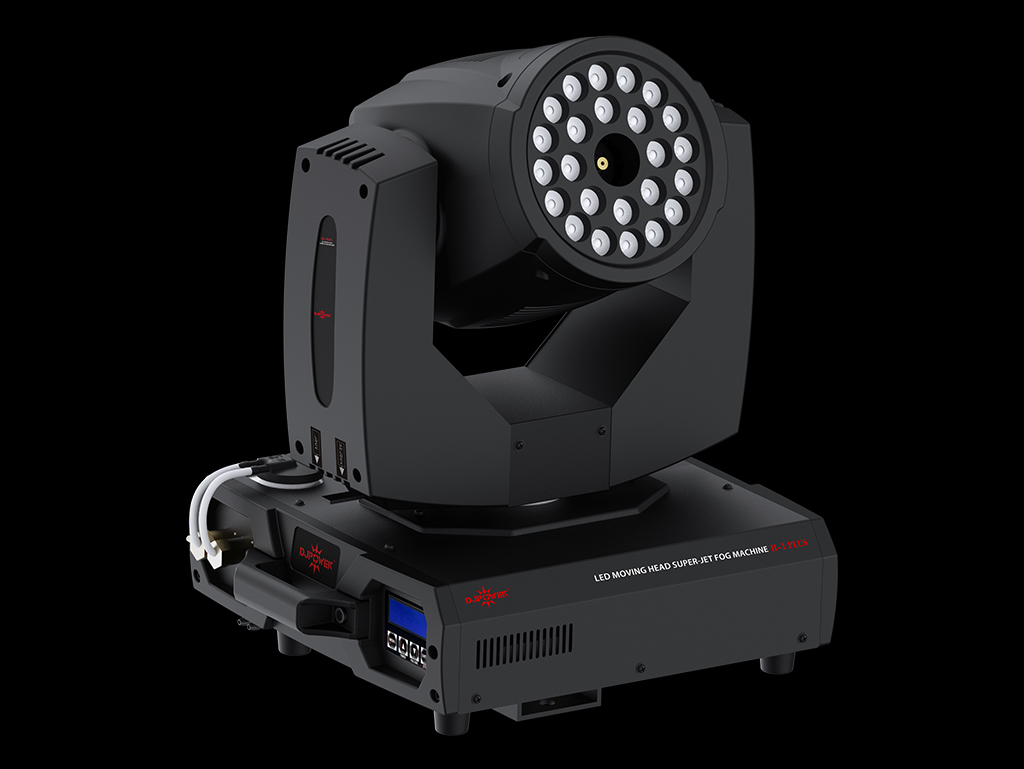

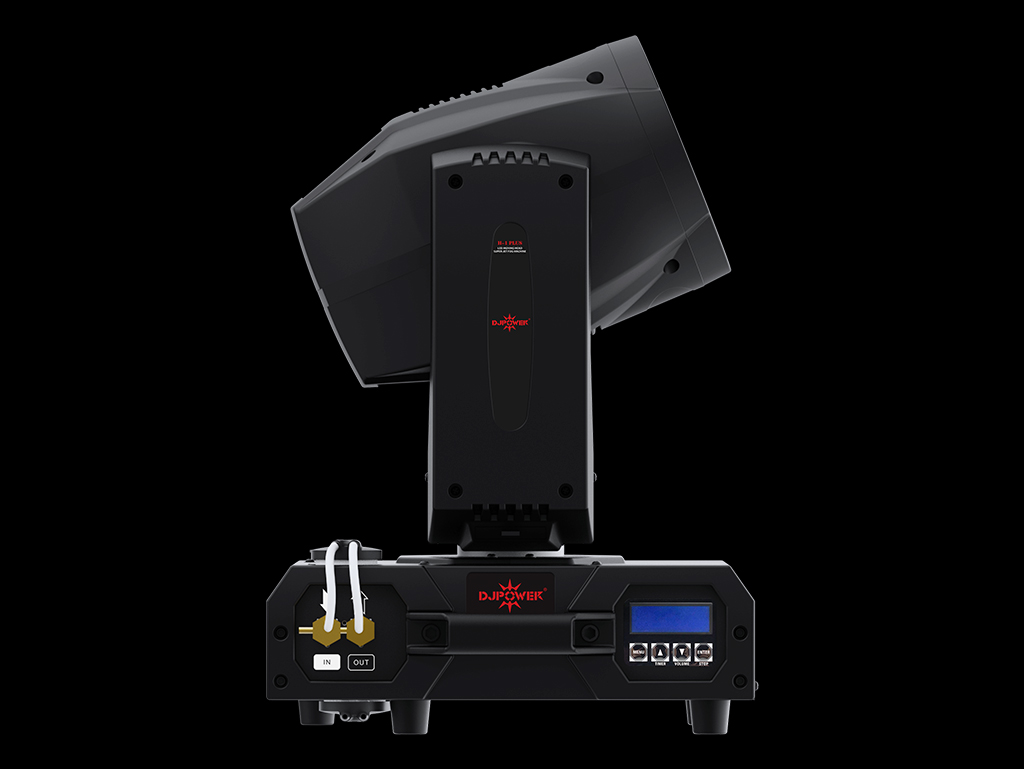

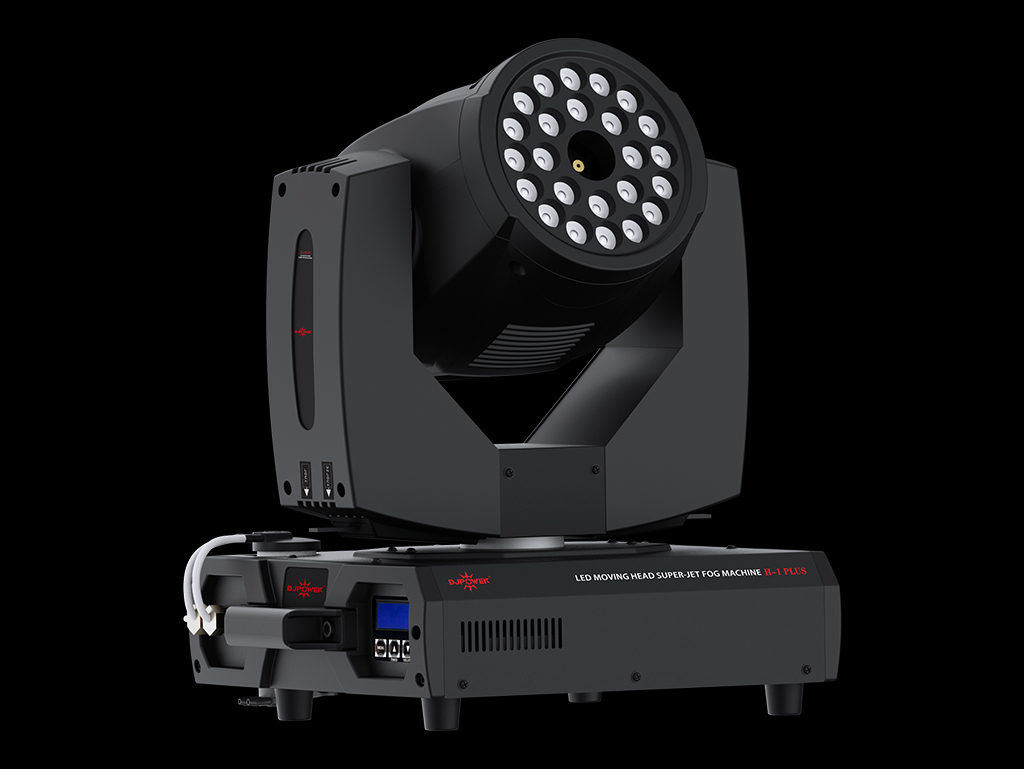

H-1 PLUS

LED MOVING HEAD SUPER-JET FOG MACHINE

H-1 PLUS is an upgraded version of DJPOWER LED moving head fog machine. The patented technology of super jet, the response speed of smoke spray is faster. 24PCS 5W RGBA LED lights. At the same time, the size of heater is bigger. So that the fog output is stronger and the color is brighter. which can achieve 360°smoking effect. The machine has the patented technology of super jet (patent number: ZL201520934500.2) and Immediate-Stop and Anti-Squirting Plus patented technology (patent number: ZL201320700998.7).

Features

  • Super-jet function  Longer output distance；
  • Immediate-Stop and Anti-Squirting Plus patented technology；
  • 24PCS 5W RGBA LED lights；
  • The size of heater is bigger.o that the fog output is stronger and the color is brighter；
  • Upgraded structure, more safer and convenient；
  • Built-in LCD control, DMX512 control；
  • 360° moving head rotation, hung or place on floor；
  • Please use DJPOWER professional fog fluid PRO-A or PRO-V.

In addition, the moving head fog machine is equipped with a new and small controller box, which can be bought separately. The controller box enables the machine work automatically without DMX console! Such as when four machines daisy chained, the machines can work the programs you choose from the control box automatically.
Note: The actual effect may be affected by the using environment.



Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 8 A, 250 V
  • Total Power Consumption: 1,500 W
  • Power Input Connector: Lockable Power Con

Heating

  • Heat Up Time: Appr. 9.5 min
  • Heater Type: Aluminum Heater Block

Light Source

  • LED Color: RGBA
  • LED Type: Single Color
  • Power per LED: 5 W
  • Quantity of LED: 24 pcs
  • Quantity of RED: 6 pcs
  • Quantity of GREEN: 6 pcs
  • Quantity of BLUE: 6 pcs
  • Quantity of AMBER: 6 pcs
  • Total Power of LED: 120 W

Capacity

  • Fluid Tank Capacity : 1.3 L / 0.3 Gal.

Output

  • Max Output Volume: Appr. 29,000 cuft/min
  • Max Output Distance : Appr. 6.0~8.0 m
  • Fluid Consumption @ full volume : Appr. 6.8 min/L
  • Maximum Continuous Duration @ full volume: Appr. 6 sec
  • Consumable Type for Standard Output Test: PRO-V

Features

  • Physical Thermostat: √
  • Electronic Thermo-Control: √
  • Adjustable Output : √
  • No-Fluid Protection: √
  • Instant-Stop: √

Control

  • On-device Manual Control : LCD control board
  • Wireless Control: W-4 / RF 433MHz / Built-in
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 10
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-4 / RF 433MHz / Transmitter

Consumable

  • Consumable: PRO-A or PRO-V Fog Fluid

Weight & Dimensions

  • Net Weight: 26.3 kg
  • Gross Weight: 30 kg
  • Machine Dimensions: 453 × 355 × 511 mm
  • Packing Dimensions: 523 × 449 × 555 mm
