HQ-1

3D Hydro Dancer

“3D Hydro Dancer” full of magical charm is the perfect interpretation of the source of artistic creation!

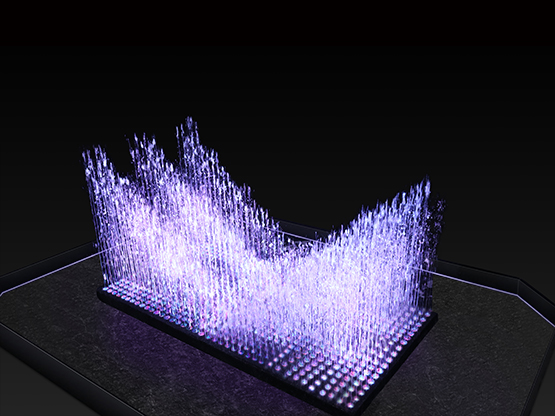

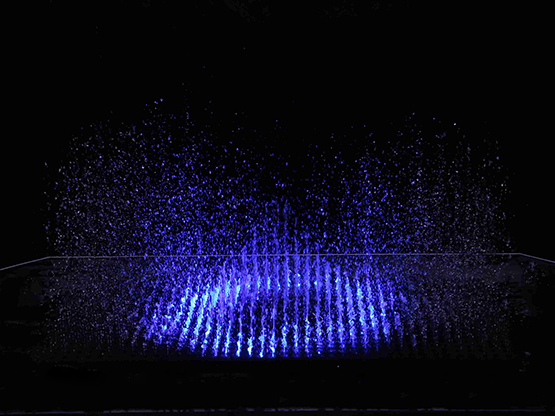

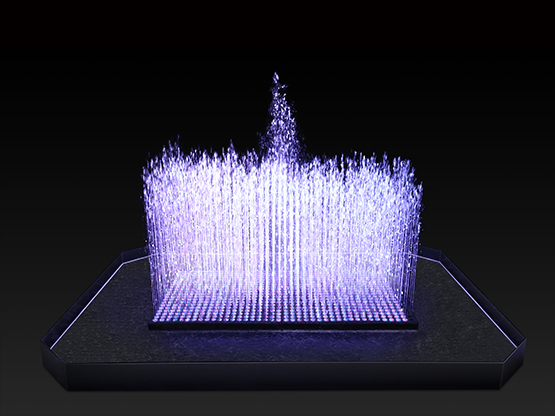

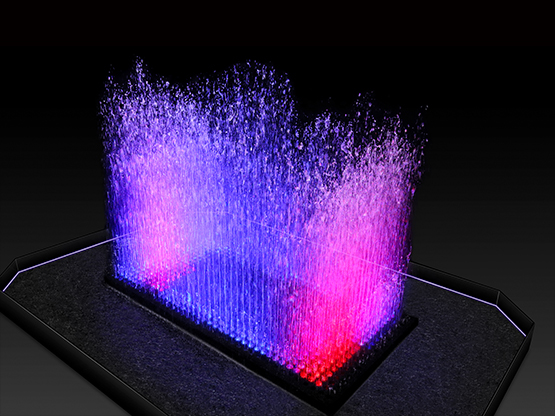

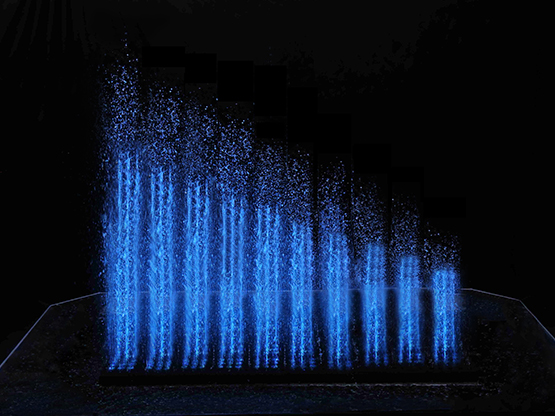

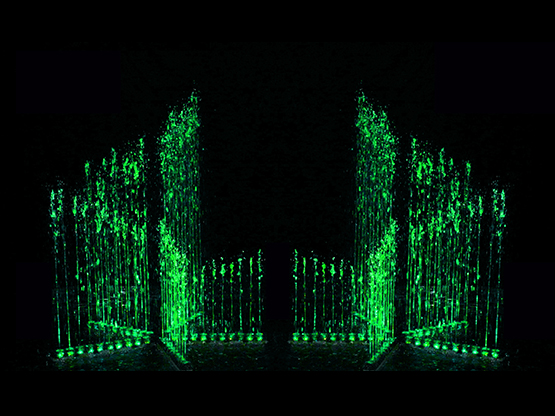

The 3D Hydro Dancer is a matrix of independently controllable water jets with independently controllable RGBW-LED illumination of each jet, which is designed to create freely programable 3-dimensional surfaces with various shades of light colors. Due to the modular design various lay-outs of the 3D Hydro Dancer are possible. The lay-out can be linear to create linear effects or in a square lay-out to create a matrix of multiple fountains.
There are 40 units per square meter, and multiple squares can be arbitrarily spliced into a larger performance matrix!
With the software, you can create all kinds of amazing water show performances!

Features

  • Driven by a 24 V low-voltage DC power supply, single module made of high-quality materials can ensure safety and durability in various complex environments.
  • Parts in the wading situation are sealed with high class epoxy resin, waterproof and safe.

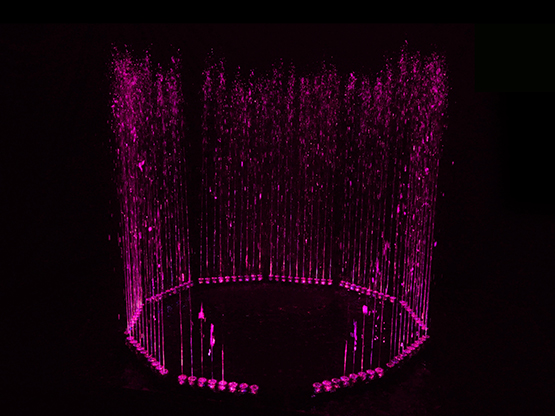

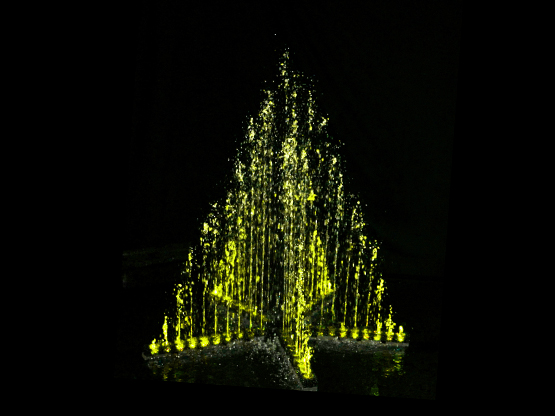

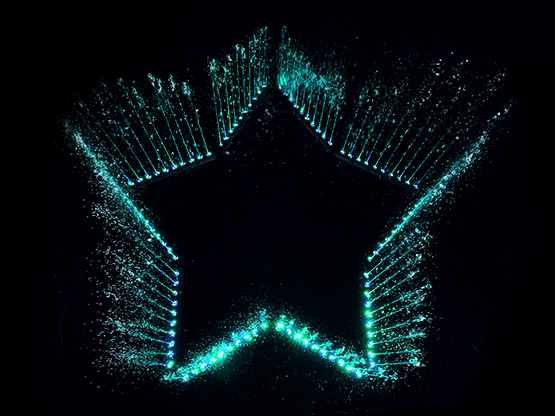

  • Any size and shape can be created easily – due to the modular design and various interconnection possibilities of the 3D Hydro Dance.
  • It can be freely designed and programmed to form various forms of fountain landscapes, realizing more interactive possibilities.

Specifications

TECHNICAL DATA(HD VERSION)

  • Input Voltage:AC 100-240V 50/60HZ
  • Working voltage:DC 24V
  • Total Power Consumption:3,840 W
  • Module Quantity:4 pcs
  • Quantity of single segment:40 pcs
  • Quantity of pixels (RGBW):400 pcs
  • Quantity of Independently controllable fountain mouth:400 pcs
  • Spacing between fountain mouths:50 MM
  • Height of the water column of fountain mouth:Appr. 1 CM ---- 1.6 M
  • DMX:SUPPORT
  • RDM:SUPPORT (With automatic DMX address assignment function)

Technical Data For One Module

  • Size:513 × 500 × 116 mm (LXWXH)
  • Quantity of pixels (RGBW):100 pcs
  • Quantity of Independently controllable fountain mouth:100 pcs
  • Quantity of single segment:10 pcs
  • Spacing between fountain mouths:50 MM
  • Height of the water column of fountain mouth:约 1 CM ---- 1.6 M
  • DMX:SUPPORT
  • RDM:SUPPORT(With automatic DMX address assignment function)

Technical Data For Single Segment

  • Size:513 × 50 × 116 mm (LXWXH)
  • Quantity of pixels (RGBW):10 pcs
  • Quantity of Independently controllable fountain mouth:10 pcs
  • Spacing between fountain mouths:50 MM
  • Height of the water column of fountain mouth:约 1 CM ---- 1.6 M
  • DMX:SUPPORT
  • RDM:SUPPORT (With automatic DMX address assignment function)

★ The above is 1 square magic spring parameter
