CAT-1

CLOUD HAZER

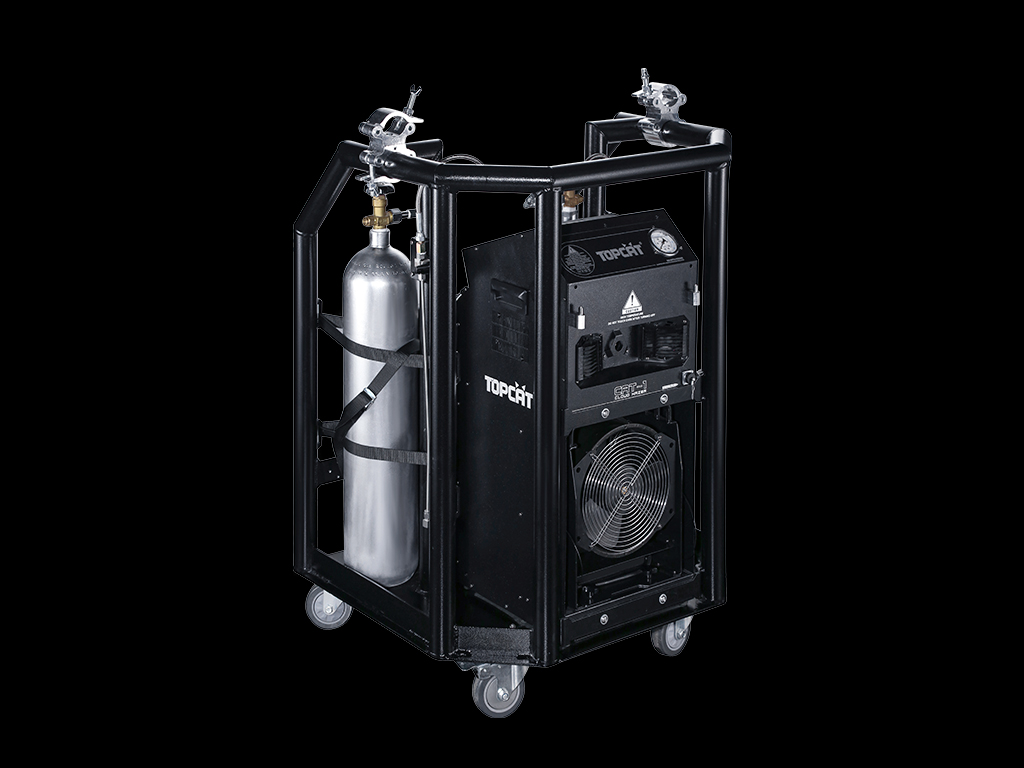

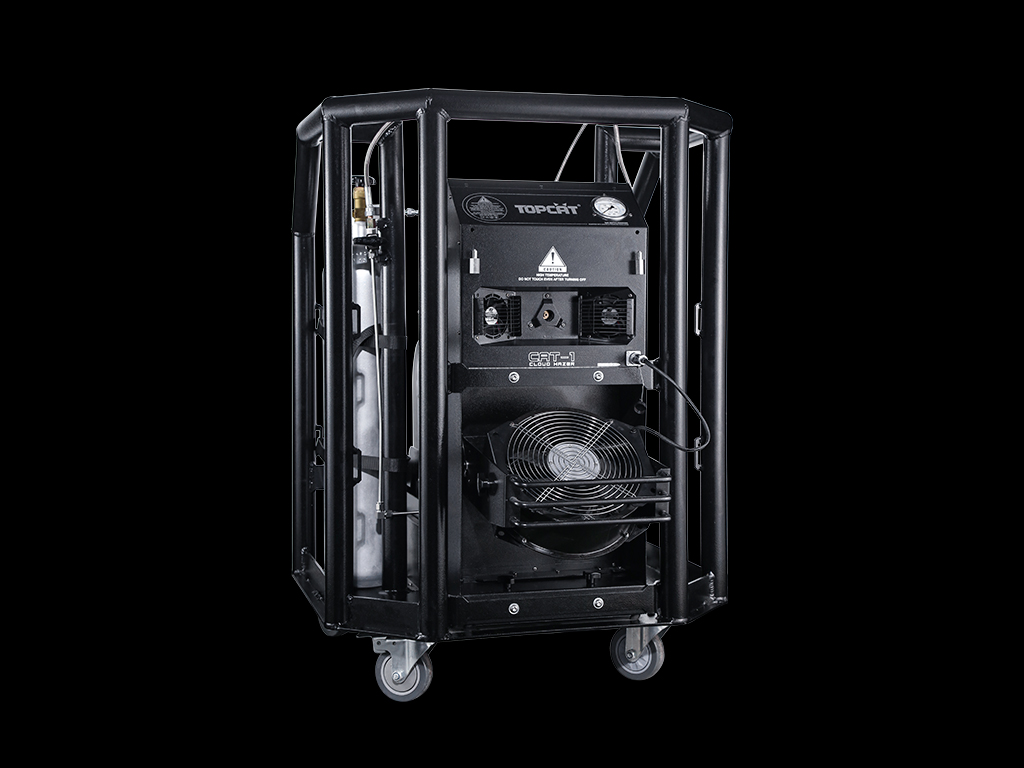

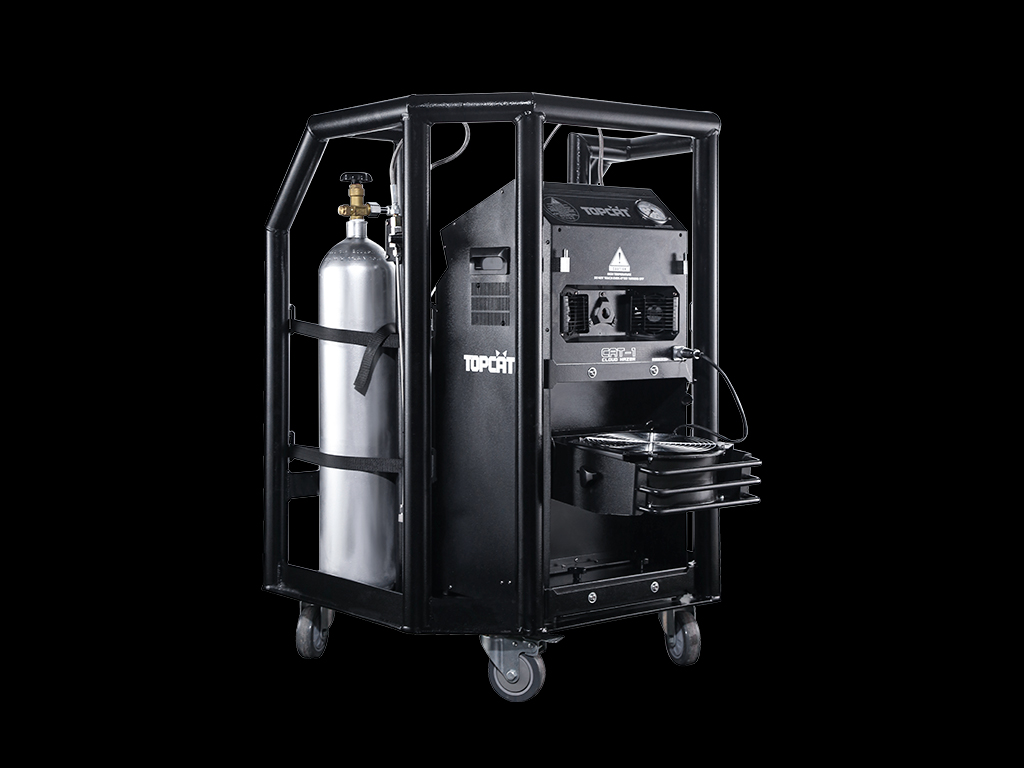

CAT-1 Cloud Hazer Atmospheric Generator is designed for large indoor and outdoor spaces, adopting a brand-new concept, through a complex pipeline arrangement, the carbon dioxide/nitrogen is evenly mixed with a special mist oil, and then through a specially made evaporation structure, a large number of tiny mist particles are generated, which can uniformly refract light. The light effect is transparent and bright, referred to as: light effect particles.
It can be simply understood that, in the case of the same smoke output, a DJPOWER CAT-1 can achieve the effect of more than 15 traditional fog machines, Cat-1 has a better light transmittance than traditional fog machines. So in actual use, the light beam will have a special texture, and the visual brightness of the light beam will also be greatly improved.
Outdoors, CAT-1 Atmospheric Generator used for large space mist manufacturing capacity, create a beautiful and long-lasting mist effect.
A special texture for the beam, a beautiful visual feast.

Features

  • Haze/fog dual mode with multi-function
  • Low noise, moisture-proof and long-life fan
  • Adapts to global voltage 110V and 220V with automatic voltage switching
  • Support DMX 512, RDM control
  • Haze mode 100% duty cycle to save fuel
  • Self-cleaning function make CAT-1 much more durable.
  • Super quiet fans, rapid spread of smoke

Specifications

AC Power

  • Input Voltage & Rate: AC 110 V-240 V 50/60 Hz
  • Power:1800 W

Heating

  • Heat Up Time: Appr. 18 min

Capacity

  • Tank capacity: 20 L
  • Cylinder capacity: 10 L X 2

Output

  • Output adjustable: √

Fluid consumption rate

  • Haze mode: 1% Output Appr. 1886 min/L
  • Haze mode: 50% Output Appr. 833 min/L
  • Haze mode: 100% Output Appr. 555 min/L
  • Fog mode: 1% Output Appr. 176 min/L
  • Fog mode: 50% Output Appr. 73 min/L
  • Fog mode: 100% Output Appr. 46 min/L

Gas consumption Rate

  • Haze mode:1% Output Appr. 0.3 kg/h
  • Haze mode:100% Output Appr. 0.43 kg/h
  • Fog mode:1% Output Appr. 0.72 kg/h
  • Fog mode:100% Output Appr. 1.29 kg/h

Installation

  • Lie flat: √
  • Slanting: ×
  • Side lay (do not cover the radiating holes): ×
  • Hang upside down: ×
  • Hang up: √

Control mode

  • Manual control: √
  • Wireless remote control: ×
  • Wired Control: ×
  • Control Protocol: DMX512/RDM
  • DMX Channel Range: 3

Consumable

  • Consumable: Neutral PRO-GX and CO2 or N2

Weight & Dimensions

  • Net Weight: 103 kg
  • Gross Weight: 145.5 kg
  • Machine Dimensions: 750 × 665 × 1025 mm
  • Packing Dimensions: 790 × 715 × 1215 mm
