H-8S

PRO DMX BUBBLE MACHINE

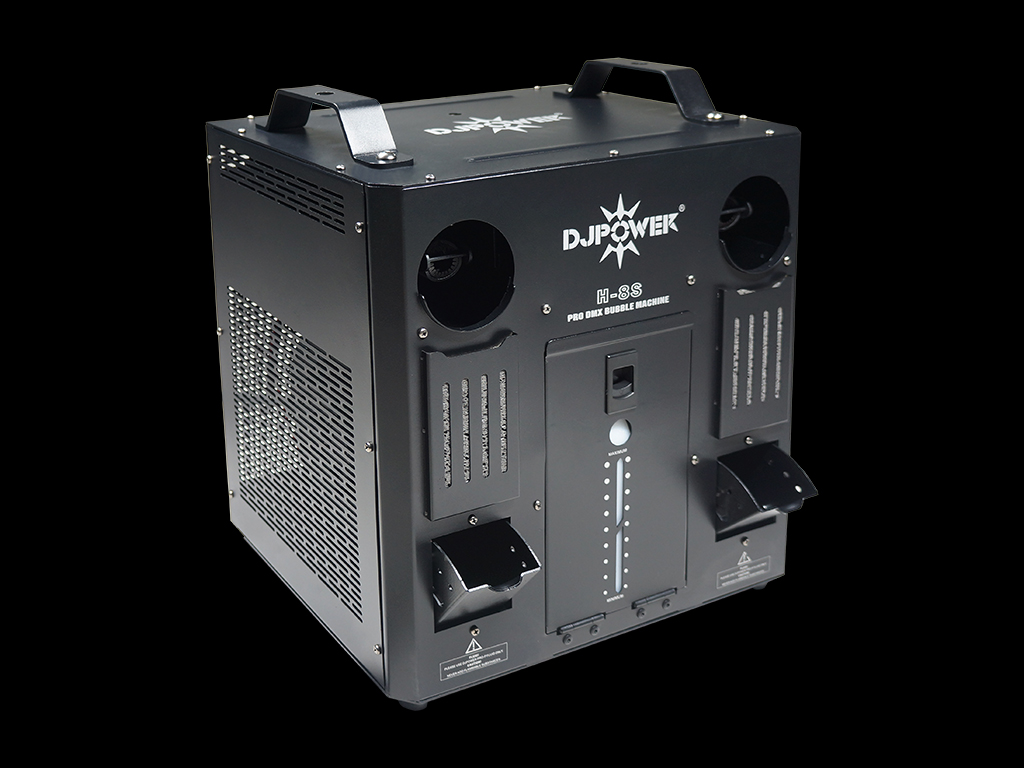

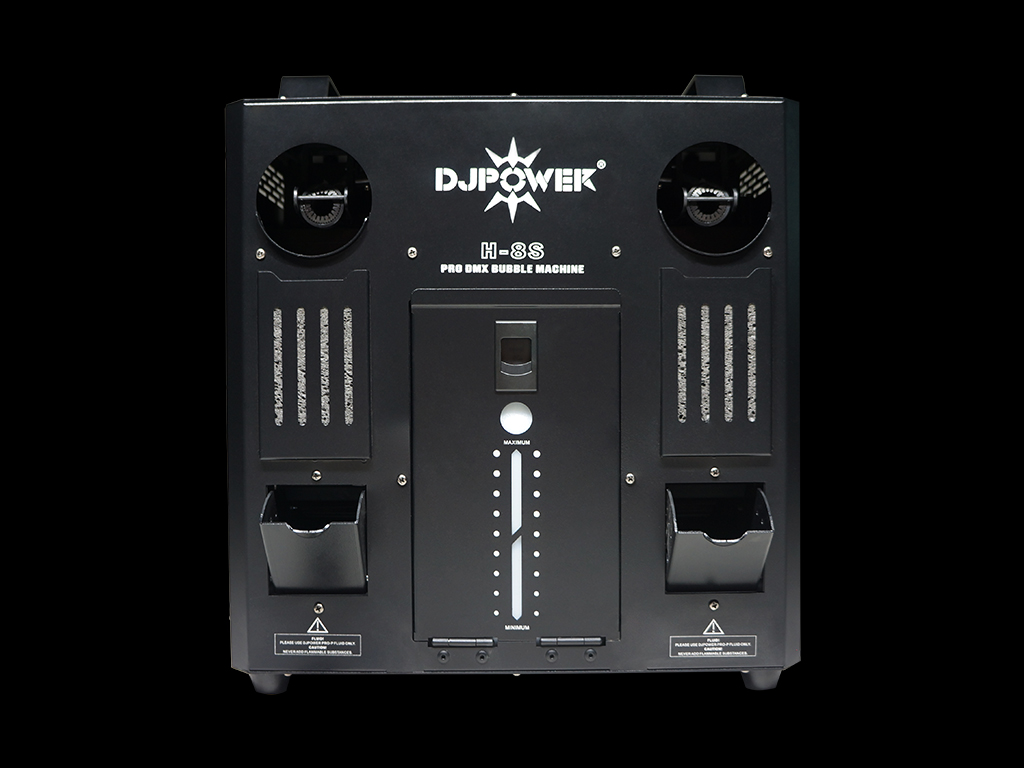

The H-8S DMX Pro Bubble Machine is a revolutionary professional and durable machine that is capable of introducing enormous quantities of bubbles into the atmosphere. It is also equipped with 2 fans at bottom that offer a variable speed and angle control which allows for greater flexibility in the bubble projection. The excess bubble fluid will flow back to waste fluid tank through pipe instead of dropping on the ground.

Features

  • Nozzle-pipe delivery system which protects each bubble from the disturbance of the machine parts and each other to reduce bubble failure rate.
  • Dual nozzles generate enormous quantities of bubbles.
  • Enclosed fluid tank stores and keeps fluid protected against the environmental elements for long time to ensure the quality of bubble projection.
  • Enclosed fluid tank allows machine’s transportation with fluid in.
  • Two high power speed adjustable fans and four angles wind outlet.
  • Durable plastic or stainless-steel nozzle.
  • Unique design of waste fluid collection bin, to collect excess bubble fluid by flowing back through pipeline instead of dropping on the ground.
  • Built-in LCD control, wireless control and DMX control.
  • Please use DJPOWER professional bubble fluid Pro-P.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Fuse (F)
  • Current Limiter Specifications: 2 A, 250 V
  • Total Power Consumption: 200 W
  • Operating Current: 0.9 A
  • Power Input Connector: Lockable PowerCon
  • Power Output Connector (Daisy Chained): Lockable PowerCon

Capacity

  • Fluid Tank Capacity : 3 L

Output

  • Adjustable Volume: √
  • Max Output Height: Appr. 4 m
  • Max Output Distance : Appr. 8 m
  • Fluid Consumption @ full volume : Appr. 64 min/L
  • Maximum Continuous Duration @ full volume: Appr. 2 h
  • Continuous Output : √
  • Max Continuous Output Level: 100%
  • Fully-loaded Cumulative Output Duration @ full volume: Appr. 224 min

Features

  • Physical Thermostat: ×
  • Electronic Thermo-Control: √
  • Adjustable Output : √
  • Adjustable Fan Speed: √
  • No-Fluid Protection: ×

Control

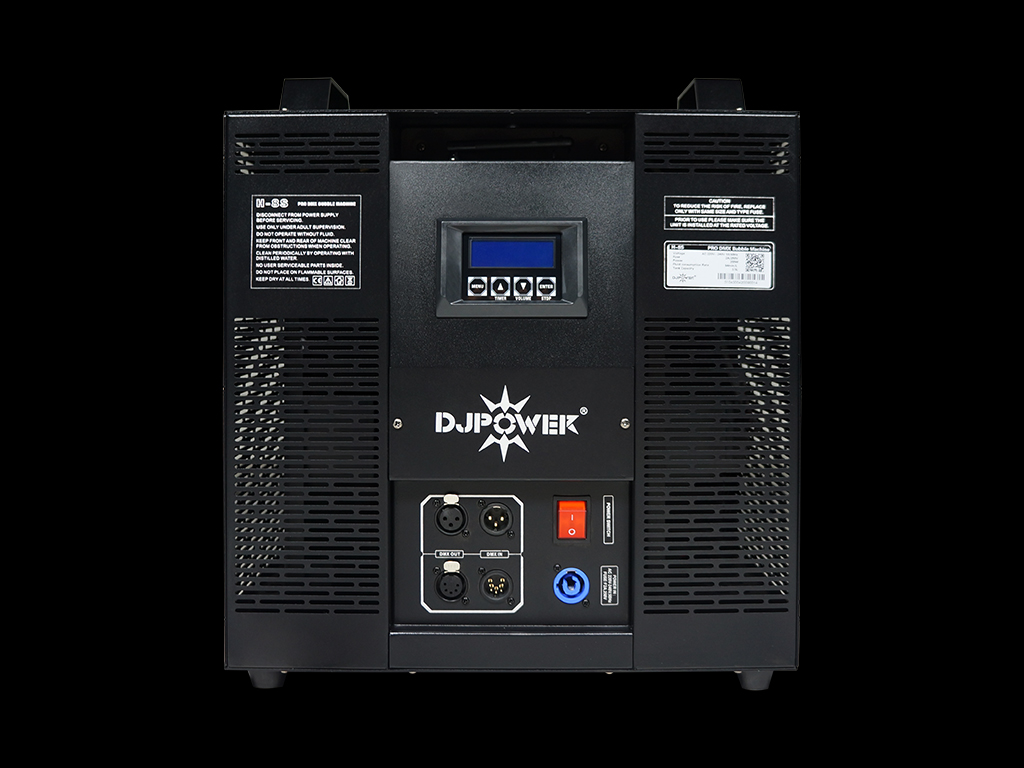

  • On-device Manual Control : LCD control board
  • Wireless Control: W-4 / RF 433MHz / Built-in
  • Control Protocol: DMX-512
  • DMX Channel Range: 1
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-4 / RF 433MHz / Transmitter

Consumable

  • Consumable: PRO-P Bubble Fluid
  • Weight & Dimensions
  • Net Weight: 17.5 kg / 38.6 lb.
  • Gross Weight: 19.5 kg / 43 lb.
  • Machine Dimensions: 388 × 271 × 427.5 mm / 15.3 × 10.7 × 16.8 in.
  • Packing Dimensions: 500 × 385 × 500 mm / 19.7 × 15.2 × 19.7 in.
