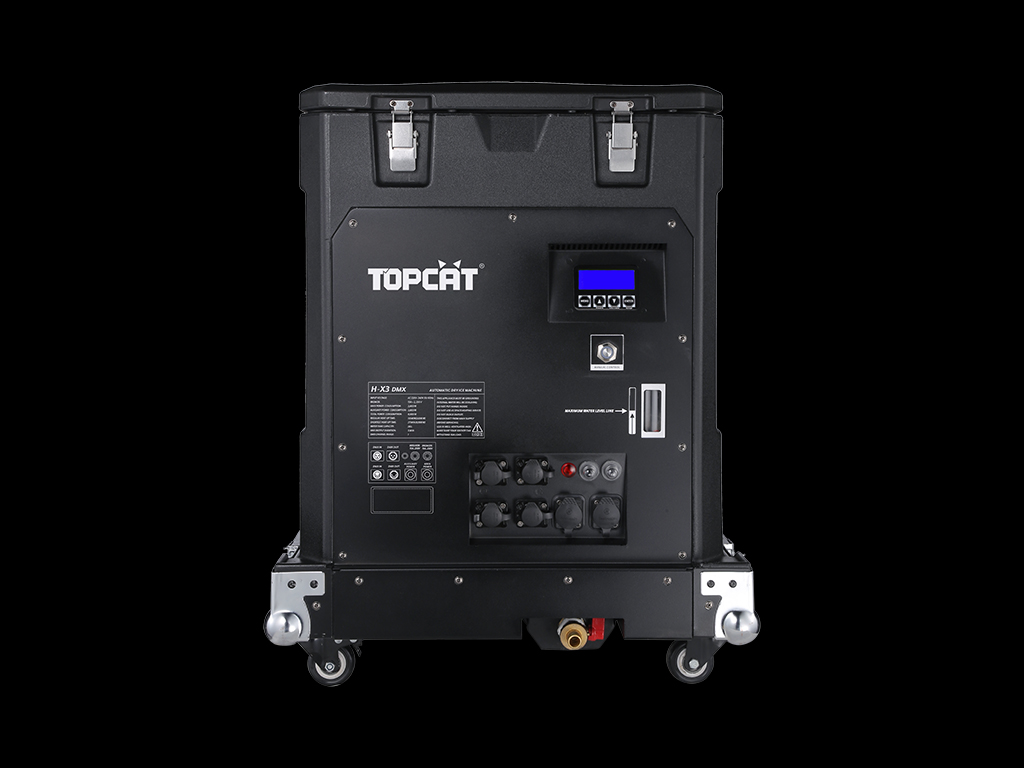

H-X3 DMX

AUTOMATIC DRY ICE MACHINE

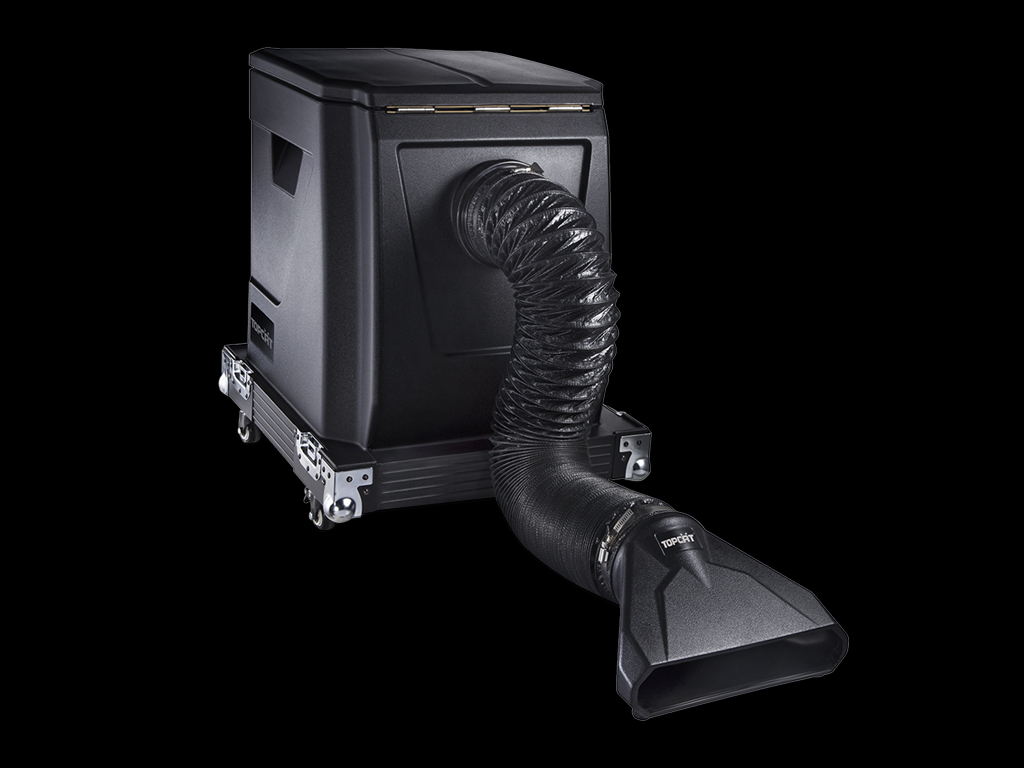

H-X3 is an upgraded dry ice low fog machine from H-X1. It creates thick, white fog hugging the floor and dissipating without rising. Dual heaters allow for faster heat-up and recycle time. The unique design allows remaining dry ice to be stored temporarily in the machine for next uses. It includes a hose, flight case and casters, very convenient for transportation and moving. H-X3 is ideal for weddings, stages, theaters, nightclubs and any other event productions.

Features

  • Enhanced high-intensity composite shell, lighter and durable;
  • Dual heating system, (3,000 W/6,100 W) allow for faster heat-up (only 27 min.);
  • Clear water level indicator;
  • Easy one-button fog operation;
  • Create strong fog from at most 13 kg of dry ice one time to cover max 560㎡;
  • Adjustable fog output. 5 minutes of run time when full on;
  • Tap-design drain outlet, easy to pour out the remaining water after use.
Note: The actual effect may be affected by the using environment.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 15 A × 2, 250 V
  • Total Power Consumption: 6,100 W
  • Operating Current: 26.1 A
  • Power Input Connector: Lockable PowerCon IP65

Heating

  • Heat Up Time: Appr. 27.0 min

Heating

  • Total Heating System Power Consumption : 6,100 W
  • Main Heating System Power Consumption : 3,000 W
  • Assistant Heating System Power Consumption : 3,000 W
  • Standard 1st time Heat-up Time : Appr. 50.0 min
  • Shortest 1st time Heat-up Time : Appr. 27.0 min

Capacity

  • Water Chamber Capacity : 36 L
  • Dry Ice Capacity (Weight): Appr. 13 kg

Output

  • Adjustable Volume: √
  • Volume Adjustment Level/Range: 10%-100%
  • Max Coverage: Appr. 560 ㎡
  • Maximum Continuous Duration @ full volume: Appr. 5 min
  • Continuous Output : √
  • Max Continuous Output Level:Pellet Dry Ice

Features

  • Physical Thermostat: ×
  • Electronic Thermo-Control: √
  • Adjustable Output : √
  • Adjustable Fan Speed: ×
  • No-Fluid Protection: ×

Control

  • On-device Manual Control : LCD & Physical manual button
  • Wireless Control: ×
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 1
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Diversion Hose: 1pc, 2m, 125mm
  • Diversion Nozzle: 125 mm
  • Moving Cart:
  • Power Cord: √
  • Wireless Controller Model: ×
  • Wired Controller Model: ×

Consumable

  • Consumable: Conlumnar Dry Ice


Weight & Dimensions

  • Net Weight:36.4 kg
  • Flight case Weight53.4 kg
  • Gross Weight:56.6 kg
  • Machine Dimensions:572 × 500 × 660 mm
  • Flight case Dimensions:572 × 500 × 838 mm

  • Packing Dimensions: 640 × 560 × 890 mm
