X-7M

Hybrid JET

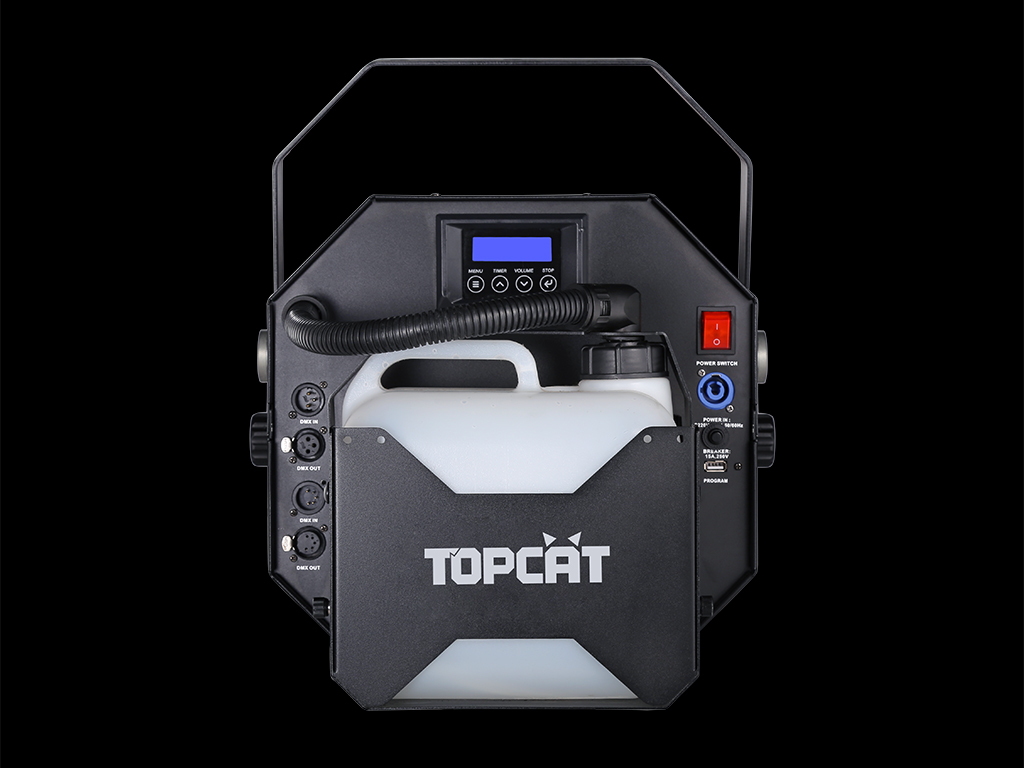

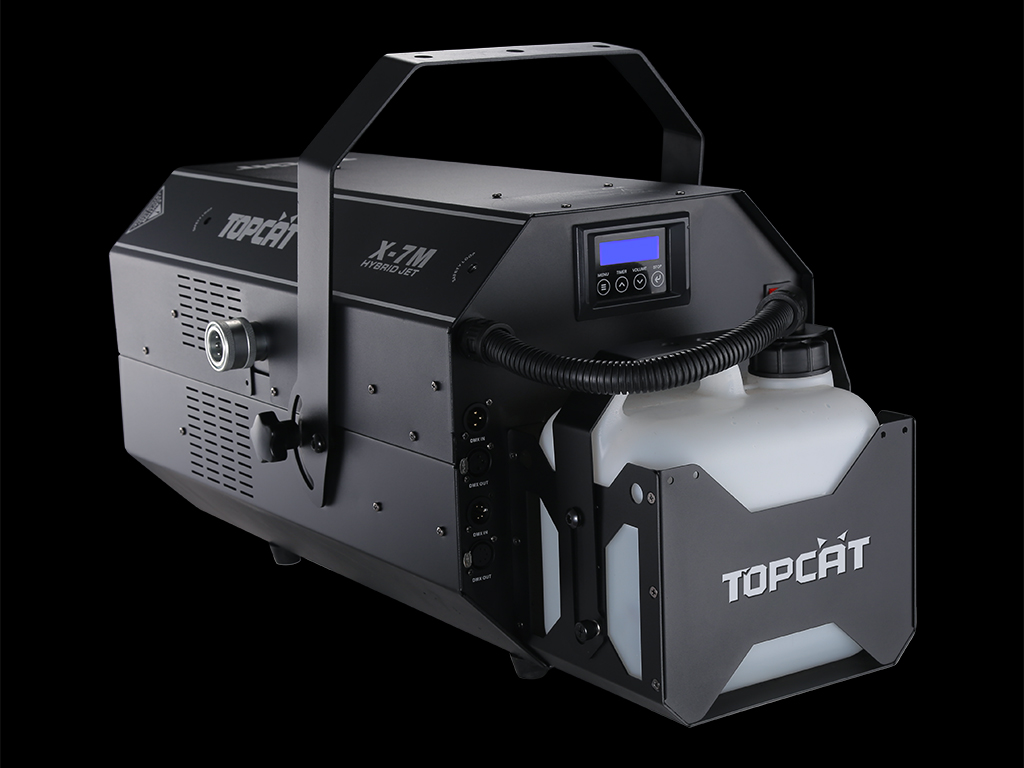

TOPCAT X-7M is a latest developed Hybrid Jet by mixing Co2 JET and FOG machine.

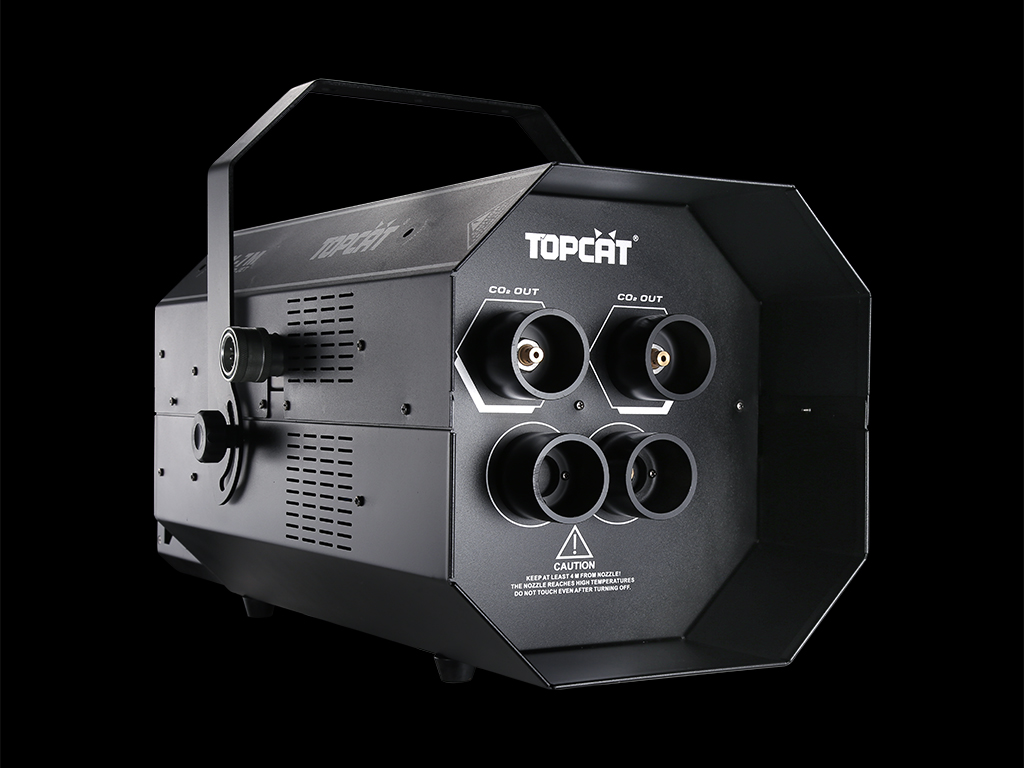

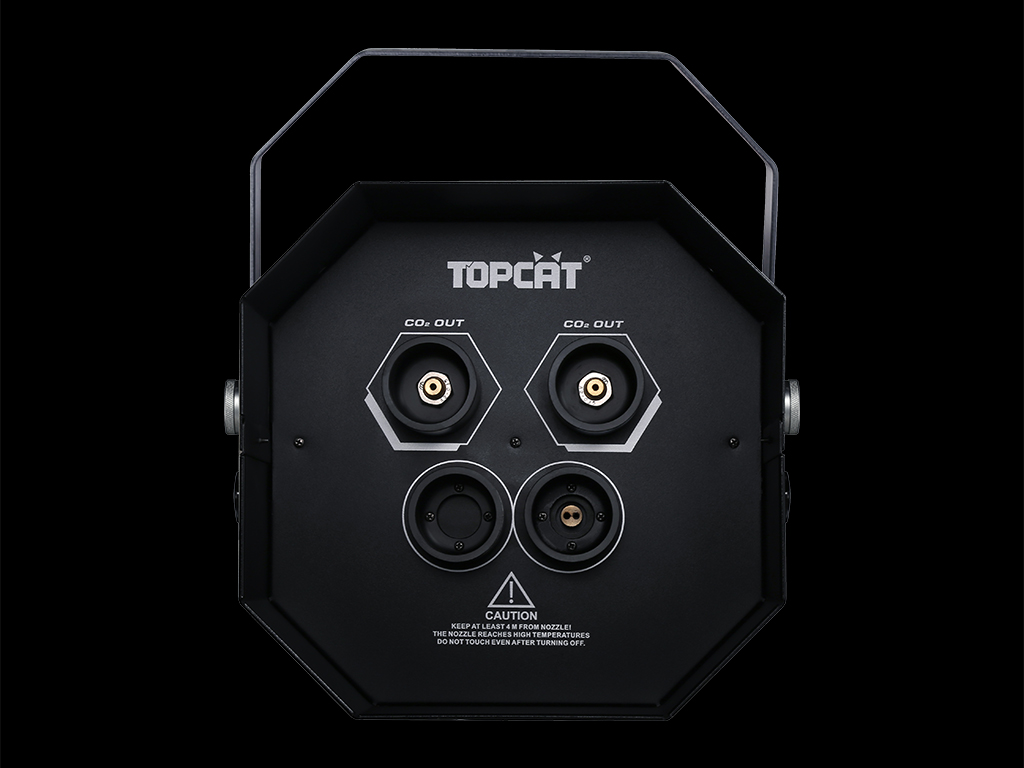

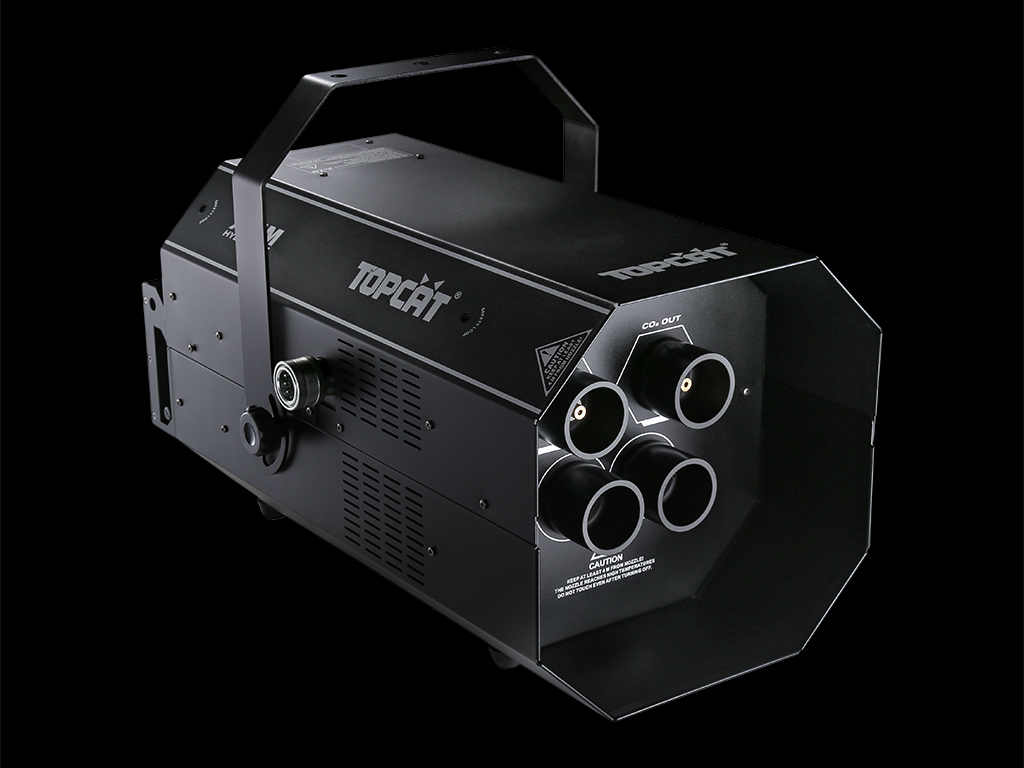

The unit comes with two nozzles for Co2 output and one dual nozzle fog output.
When combining together, it can achieve that effect of a four-nozzle Co2 JET while consuming half amount of gas, making it cost effective. Both Co2 output and Fog output can be controlled separately also, that means it can be used as fog machine or Co2 Jet. It is pretty suitable for the application of nightclubs, music festivals and event halls.

Features

  • Hybrid two in one unit, fog machine + Co2 JET.
  • Gas saving with fog fluid being used to enhance output;
  • Massive output, creating extraordinary gas column effect;
  • High quality durable magnetic valve;
  • Stable and strong anti-interfere circuit design, stable and reliable;
  • Please use DJPOWER fog fluid PRO-V.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 15 A, 250 V
  • Total Power Consumption: 2,500 W
  • Operating Current: 11.3A
  • Power Input Connector: Lockable PowerCon IP65
  • Power Output Connector (Daisy Chained): Lockable PowerCon IP65

Output

  • Adjustable Volume: ×
  • Max Output Distance : Appr. 12 m

Control

  • On-device Manual Control : 7-seg digital display
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 3
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Flight Case: Optional
  • Power Cord: √
  • Wired Controller Model: ×
  • CO2 Cylinder: Optional

Consumable

  • Consumable: CO2 and PRO-V or PRO-D or PRO-A

Weight & Dimensions

  • Net Weight: 35 kg
  • Gross Weight: 41 kg
  • Machine Dimensions: 705 × 395 × 340 mm
  • Packing Dimensions: 840 × 530 × 448 mm
