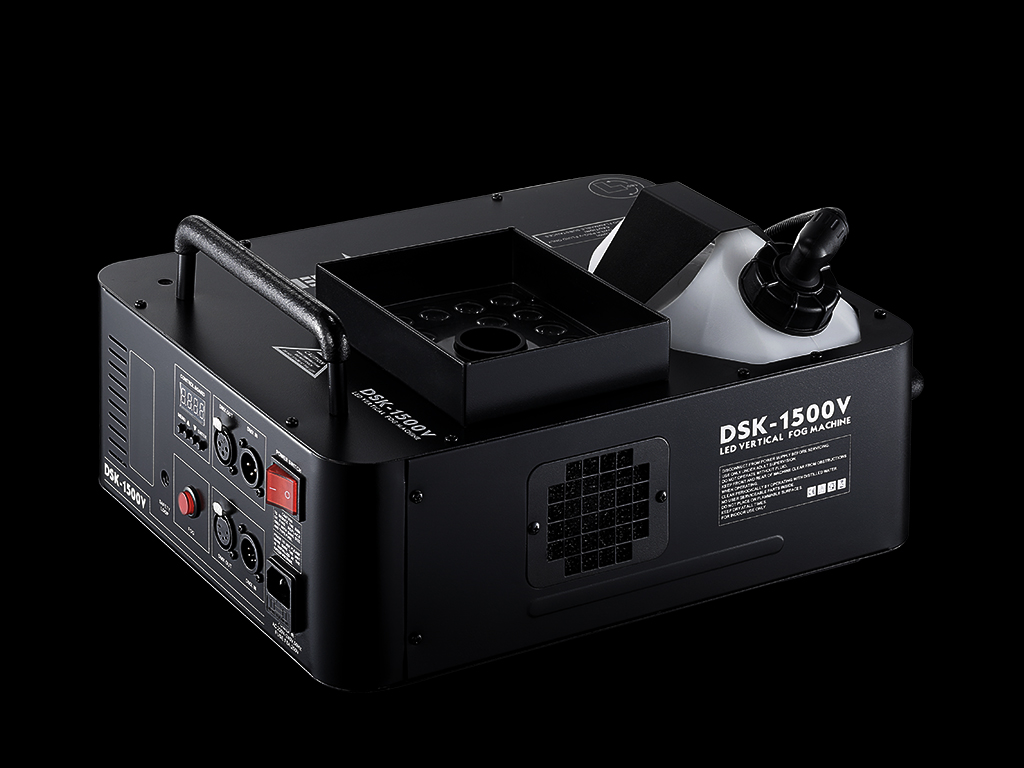

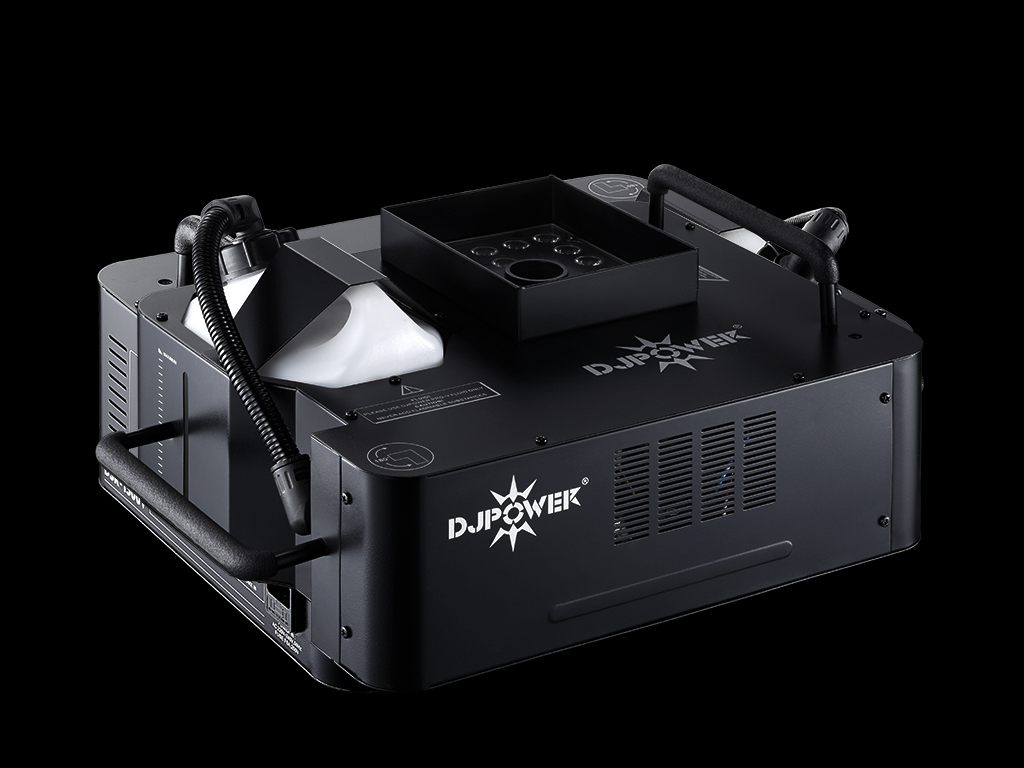

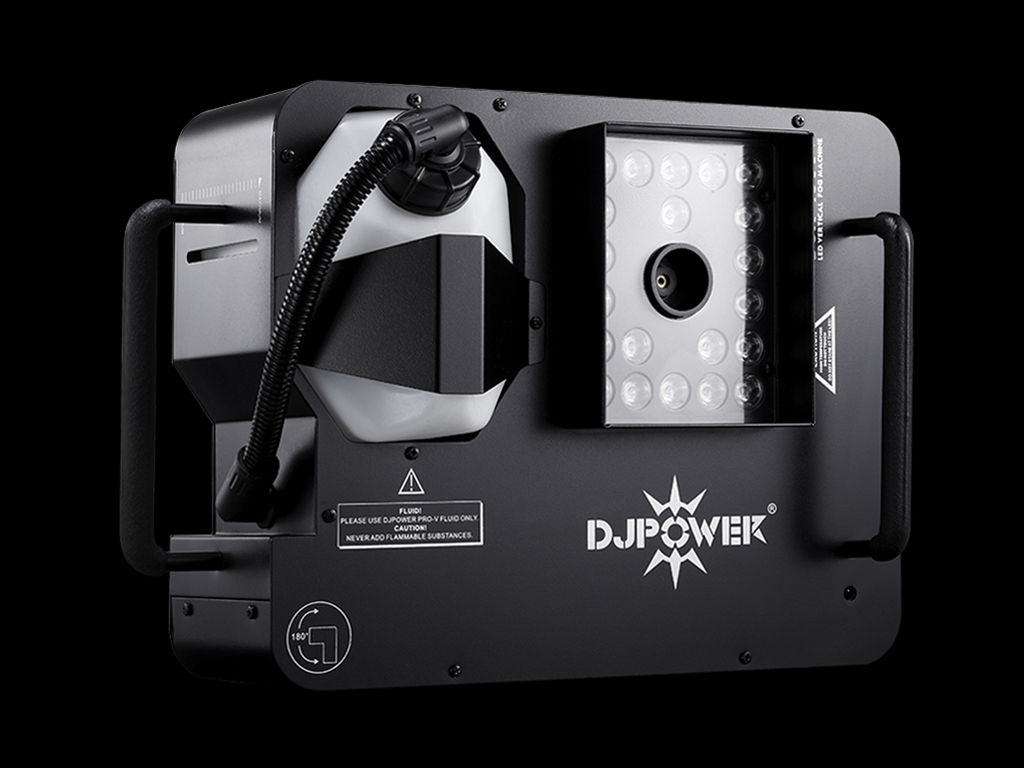

DSK-1500V

LED VERTICAL FOG MACHINE

As a classical vertical fog machine, DSK-1500V has been a best seller for tens of thousands of sets in the past, which blasts a vertical stream of safe, water-based fog while simultaneously illuminating it with 21 high-power (3w) LEDs. A combination of red, green, and blue LEDs allows you to easily mix the perfect color to 6-8 meters high. More importantly, with DJPOWER’s unique "immediate-stop" patented technology, it jets and stops synchronously and consistently. With newest "Anti-Squirting Plus" technology, it is safer no matter hung or placed on the floor.

Features

  • 21pcs 3W RGB LEDs produces colorful fog effect;
  • Various placing ways, can be placed horizontally or on its side, or hung up-side-down;
  • Immediate-Stop patented technology;
  • Advanced "Anti-Squirting Plus" technology, greatly reduced the probability of squirting water;
  • Advanced No-Fluid protection;
  • Unique Temperature Control System;
  • Heating system adopts MIRROR patented technology (MIRRIOR Pipe) to prevent being clogged;
  • Output button for standby application;
  • Digital display control, Wireless control, and 3-pin, 5-pin DMX control
  • Please use DJPOWER professional thin fog fluid PRO-V.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Fuse (F)
  • Current Limiter Specifications: 8 A, 250 V
  • Total Power Consumption: 1,500 W
  • Operating Current: 6.5 A
  • Power Input Connector: IEC

Heating

  • Heat Up Time: Appr. 4.0 min
  • Heater Type: Aluminum Heater Block

Light Source

  • LED Color: RGB
  • LED Type: Single Color
  • Power per LED: 3 W
  • Quantity of LED: 21 pcs
  • Quantity of RED: 7 pcs
  • Quantity of GREEN: 7 pcs
  • Quantity of BLUE: 7 pcs
  • Total Power of LED: 63 W

Capacity

  • Fluid Tank Capacity : 2.5 L

Output

  • Adjustable Volume: ×
  • Volume Adjustment Level/Range: ×
  • Angle Adjustment Level/Range: ×
  • Max Output Volume: Appr. 32,000 cuft/min
  • Max Output Height: Appr. 6.0~8.0 m
  • Fluid Consumption @ full volume : Appr. 6.3 min/L
  • Maximum Continuous Duration @ full volume: Appr. 7 sec
  • Continuous Output : ×
  • Fully-loaded Cumulative Output Duration @ full volume: Appr. 15 min
  • Consumable Type for Standard Output Test: PRO-V

Features

  • Physical Thermostat: √
  • Electronic Thermo-Control: √
  • Adjustable Output : ×
  • No-Fluid Protection: √
  • Instant-Stop: √
  • Supper-Jet: ×
  • Inner Flame Color Changing (IFCC): ×

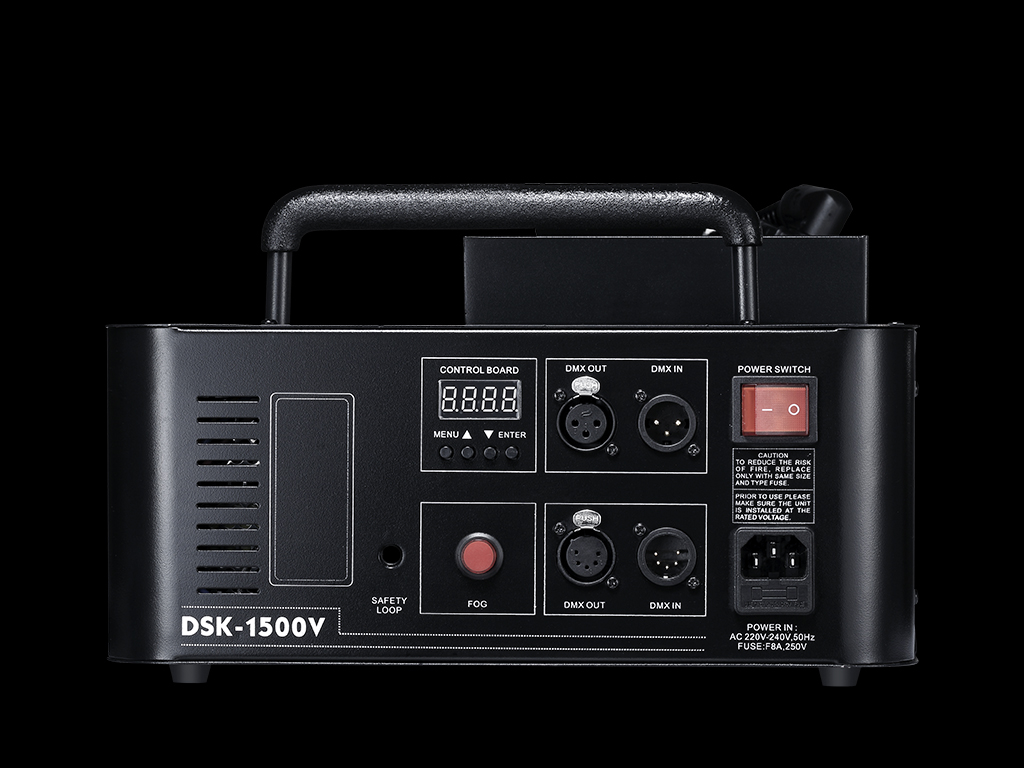

Control

  • On-device Manual Control : 7-seg digital display & Physical manual trigger
  • Wireless Control: W-5 /RF 433MHz /Built-in
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 8
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-5 / RF 433MHz / Transmitter

Consumable

  • Consumable: PRO-V

Weight & Dimensions

  • Net Weight: 8.7 kg / 19.2 lb.
  • Gross Weight: 9.6 kg / 21.2 lb.
  • Machine Dimensions: 475 × 314 × 205 mm / 18.7 × 12.4 × 8.1 in.
  • Packing Dimensions: 510 × 375 × 250 mm / 20.1 × 14.8 × 9.8 in.
